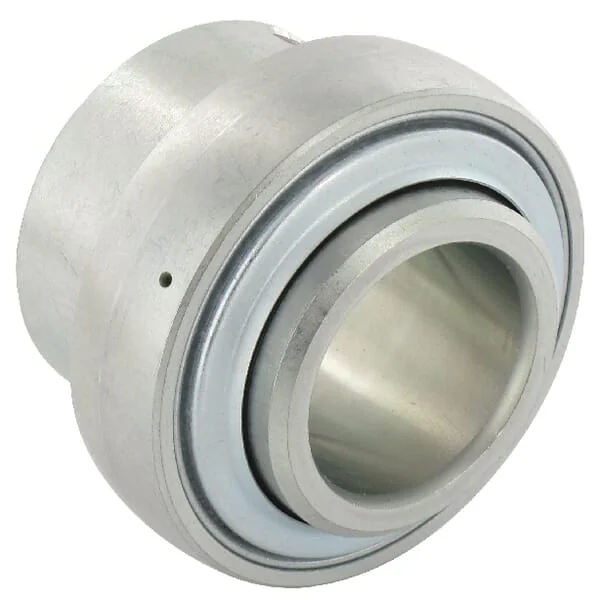

INA FAG - GE40KRRBFA1255 - Bearing Insert 40x80x21mm INA FAG

OEM Supplier

SKU: ina-fag-ge40krrbfa1255

INA FAG - GE40KRRBFA1255 - Bearing Insert 40x80x21mm INA FAG

€50.82

(excl. VAT)

In stock - ready to ship

Ships within 48 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€50.82

INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Unit
Each
Weight
0,74 kg
Properties
Extended inner ring with clamp ring on both sides Convex outer ring with lubricating holes R seal Polyamide housing
Consists of
Clamp bearing Clamp ring
Sealing width
23,5 mm
Technical info
Supplement FA: rust-proof Corrotect design
dInside diameter
40 mm
Application range
Mobile mechanical engineering Stationary mechanical engineering
BInner ring width
42,9 mm
COuter ring width
21 mm
DspOutside diameter
80 mm
Wrench/Spanner size
5.0 mm
Basic radial load static
19800 N
Basic radial load dynamic
34500 N
Ball centre to end distance
21,4 mm
Locking collar outside diameter
58 mm
d1Outside diameter of inner ring
52,3 mm
Ball centre to grease hole distance
6,4 mm
Locking collar and inner ring width
56,5 mm
EAN
4012802812725
Manufacturer
INA/FAG
