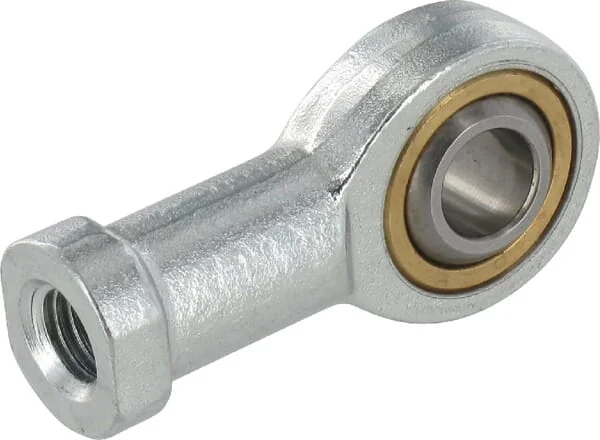

INA FAG - GIKR14PWAINA - Rod Head

INA FAG - GIKR14PWAINA - Rod Head

€39.19

(Excl. VAT)

Price

(Excl. VAT)

€39.19

Number of products

INA FAG

Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

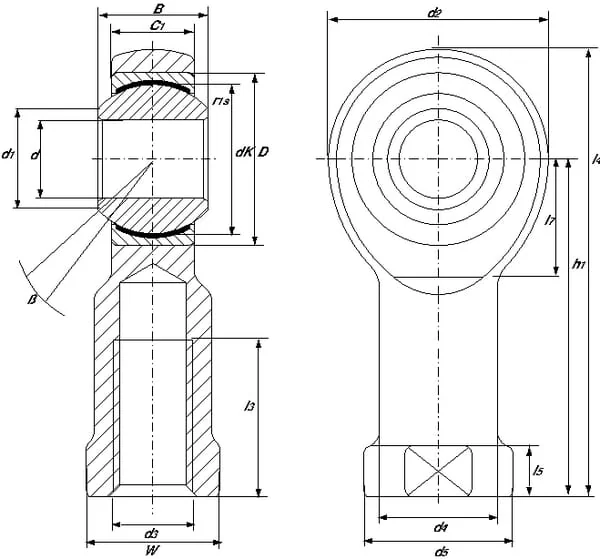

Product Details

Brand

Type

Female thread

Unit

Each

Thread

M14

Weight

0.18 kg

d2Width

36 mm

d3Thread

M14 mm

l4Length

75 mm

L5Length L5

8 mm

L7Length L7

18 mm

Thread type

Right Hand

D4Diameter D4

21 mm

C1Height house

13,5 mm

Inner diameter

14.00 mm

Technical info

PW - maintenance free (steel/PTFE material)

l3Thread length

25 mm

Thread direction

Right

dInside diameter

14 mm

Surface treatment

Zinc-plated

BHeight inner ring

19 mm

d5Outside diameter

36.00 mm

Connection diameter

26 mm

WOutside diameter basis

22 mm

dKOutside diameter ball

25.4 mm

Basic load ratings dyn. C

31000 N

DOutside diameter bearing

28 mm

Basic load ratings Stat. Co

32000 N

Suitable for original number

GIKR14-PW-A

d1Outside diameter innerring

16.8 mm

h1Distance basis center shaft

57 mm

Manufacturer

INA/FAG
