INA FAG - GK45DOINA - Ball End

OEM Supplier

SKU: ina-fag-gk45doina

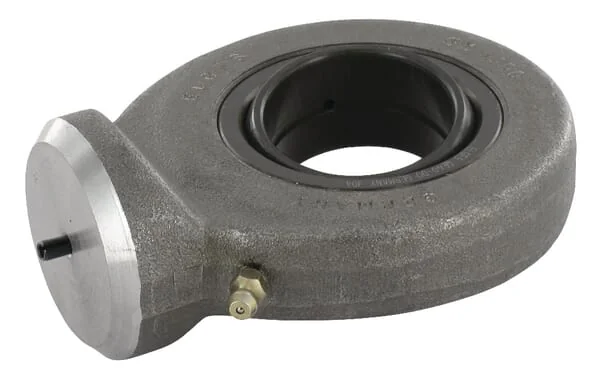

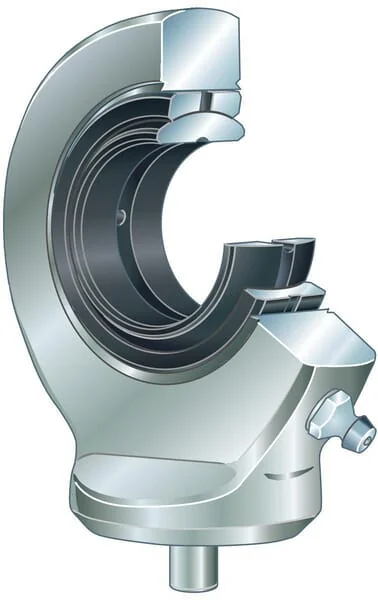

INA FAG - GK45DOINA - Ball End

€122.43

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Price

(Excl. VAT)

€122.43

INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Unit
Each
Width
128.00 mm
Weight
1.89 kg
Edge angle
7 °
BHole length
32 mm
Inner diameter
45.00 mm

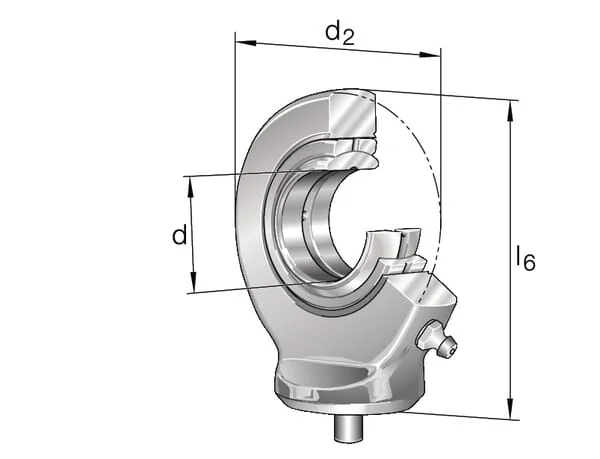

L6Total height
128 mm
d2Total length
128 mm
dHole diameter
45 mm
Outside diameter
102.00 mm
d6Shaft diameter
58 mm
Height inner ring
32 mm
Head outside diameter
102 mm
d7Center pin diameter
6 mm
Outside diameter bearing
68 mm
Shaft to center distance
52 mm
C1Head width (hole length)
27 mm
Basic load ratings dyn. Cr
128.000 kN
Distance basis center shaft
77 mm
Basic load ratings Stat. Cor
208.000 kN
d1Outside diameter of inner ring
50,7 mm
h2Hole centre to bottom distance
77 mm
EAN
4012802527254
Manufacturer
INA/FAG
