INA FAG - GNE35KRRB - Bearing

OEM Supplier

SKU: ina-fag-gne35krrb

INA FAG - GNE35KRRB - Bearing

€68.23

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€68.23

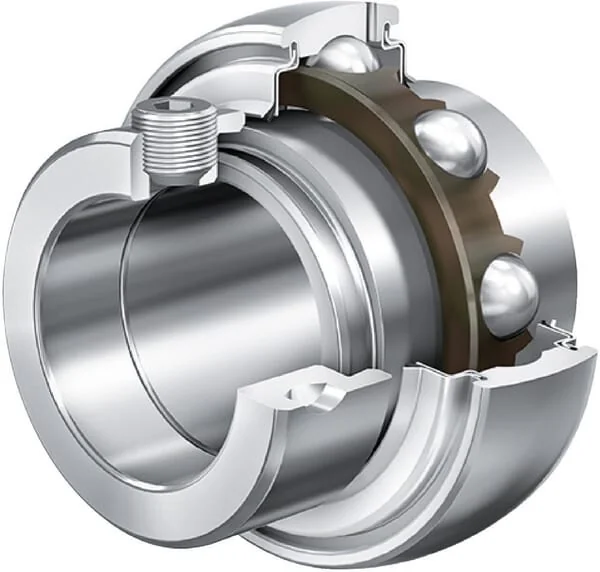

The INA-FAG GNE35KRRB is a high-quality radial insert ball bearing designed for demanding agricultural and industrial applications. Featuring a 35mm bore diameter, 72mm outer diameter, and an overall width of 38.9mm, this bearing provides reliable performance. It includes an extended inner ring with grub screw locking for secure shaft attachment and RSR seals on both sides to protect against contaminants, ensuring extended service life in harsh environments. The spherical outer ring accommodates misalignment.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
gne35krrb
Unit
Each
Weight
0,74 kg
Includes
Clamp bearing Clamp ring
Sealing width
25 mm
Inside diameter
35 mm
Inner ring width
38,1 mm
Outer ring width
22 mm
Outside diameter
80 mm
Wrench/Spanner size
5.0 mm
Basic radial load static
20900 N
Basic radial load dynamic
39000 N
Ball centre to end distance
18,3 mm
Outside diameter of inner ring
48 mm
Locking collar outside diameter
55 mm
Ball centre to grease hole distance
7 mm
Locking collar and inner ring width
51,6 mm
EAN
4012802816402
Manufacturer
INA/FAG
