INA FAG - HF1416 - Bearing
INA FAG - HF1416 - Bearing

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

INA FAG - HF1416 - Bearing

INA FAG - HF1416 - Bearing

€20.71

(Excl. VAT)

Price

(Excl. VAT)

€20.71

Product Description

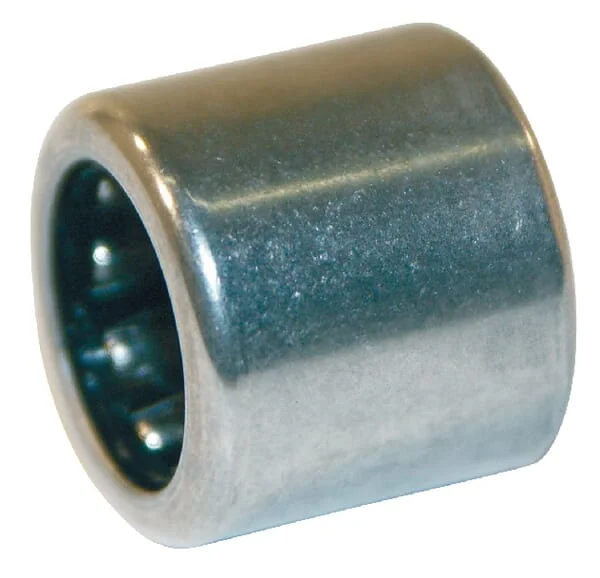

The INA HF1416 is a genuine drawn cup needle roller bearing with open ends, manufactured by Schaeffler. This high-quality bearing features a 14 mm bore diameter, a 20 mm outer diameter, and a 16 mm width, designed for compact installations requiring high load-carrying capacity. It boasts a basic dynamic load rating of 6.8 kN and a static load rating of 10.3 kN, with a fatigue load limit of 1.1 kN. Suitable for operating temperatures ranging from -20 °C to 100 °C, it can achieve limiting speeds up to 17000 r/min with oil lubrication and 11000 r/min with grease lubrication.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Product Details

Brand
ina-fag
Part Numbers
hf1416
Inner Diameter (mm)
14
Outer Diameter (mm)
20
Width (mm)
16
Weight (kg)
0.012
Bearing Type
drawn cup needle roller bearing
Ends Type
open ends
Basic Dynamic Load Rating (kN)
6.8
Basic Static Load Rating (kN)
10.3
Fatigue Load Limit (kN)
1.1
Limiting Speed Grease (rpm)
11000
Limiting Speed Oil (rpm)
17000
Min Operating Temperature (°C)
-20
Max Operating Temperature (°C)
100
Quality
OEM Supplier
Manufacturer
ina-fag
