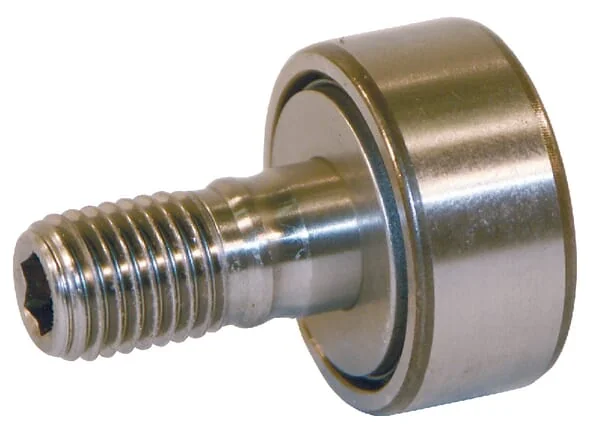

INA FAG - KR16PPA - Stud Type Track Roller
INA FAG - KR16PPA - Stud Type Track Roller
INA FAG - KR16PPA - Stud Type Track Roller
INA FAG - KR16PPA - Stud Type Track Roller

In stock - ready to ship

Order now for delivery between 7 May and 11 May
Free shipping on orders over €60

Pay Securely with

INA FAG - KR16PPA - Stud Type Track Roller

INA FAG - KR16PPA - Stud Type Track Roller

€29.55

(Excl. VAT)

Price

(Excl. VAT)

€29.55

Product Description

The INA KR16PPA is a genuine stud type track roller designed for high radial loads and shock loads in cam drives, conveyor systems, and linear guidance systems. This precision-engineered roller features a 16mm outer diameter, an M6 stud thread for secure mounting, and PP contact seals on both sides to protect the internal components from contaminants and retain lubricant. Pre-lubricated and ready for installation, the KR16PPA ensures reliable, maintenance-efficient operation in demanding industrial environments.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
CWidth
11 mm
Benefits
Can absorb high radial loads No forces on edges with uneven standing
Properties
Solid shaft with guide bore With axial guidance via driving discs NMT add-on: equipped with a nut
BTotal length
28 mm
B2Shaft length
16 mm
Inside diameter
6 mm
d1Shaft diameter
6 mm
Application range
Packaging machines Transport systems Roll-up doors Roller tensioners
DOutside diameter
16 mm
Bearing model type
Stud type track rollers
GMounting thread pitch
1.00 mm
Max working temperature
100 °C
Min working temperature
-30 °C
Basic radial load static
3450 N
IGMounting thread length
8 mm
Basic radial load dynamic
3200 N
GMounting thread diameter
M6
Manufacturer
INA/FAG
