INA FAG - KR19PPA - Curverol Type Kr
INA FAG - KR19PPA - Curverol Type Kr
INA FAG - KR19PPA - Curverol Type Kr
INA FAG - KR19PPA - Curverol Type Kr

In stock - ready to ship

Order now for delivery between 14 May and 18 May
Free shipping on orders over €60

Pay Securely with

INA FAG - KR19PPA - Curverol Type Kr

INA FAG - KR19PPA - Curverol Type Kr

€22.26

(Excl. VAT)

Price

(Excl. VAT)

€22.26

Product Description

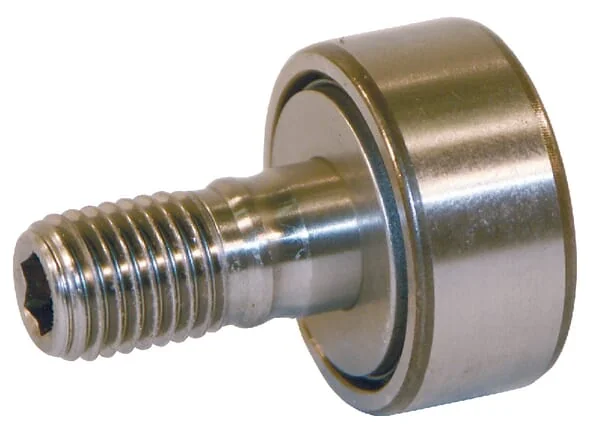

The INA-FAG KR19PPA is a genuine Curverol type stud cam follower, featuring a full complement cylindrical roller set and PPA seals on both sides for enhanced protection against contaminants. It has an M6x1 fixing thread, an outer diameter of 19 mm, a stud diameter of 6 mm, and an outer ring width of 11 mm. This robust cam follower is designed for high load capacity and precise guidance in various industrial applications.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
CWidth
11 mm
Benefits
Can absorb high radial loads No forces on edges with uneven standing
Properties
Solid shaft with guide bore With axial guidance via driving discs NMT add-on: equipped with a nut
BTotal length
32 mm
B2Shaft length
20 mm
Inside diameter
8 mm
d1Shaft diameter
8 mm
Application range
Packaging machines Transport systems Roll-up doors Roller tensioners
DOutside diameter
19 mm
Bearing model type
Stud type track rollers
GMounting thread pitch
1.25 mm
Max working temperature
100 °C
Min working temperature
-30 °C
Basic radial load static
4100 N
IGMounting thread length
10 mm
Basic radial load dynamic
3550 N
GMounting thread diameter
M8
Manufacturer
INA/FAG
