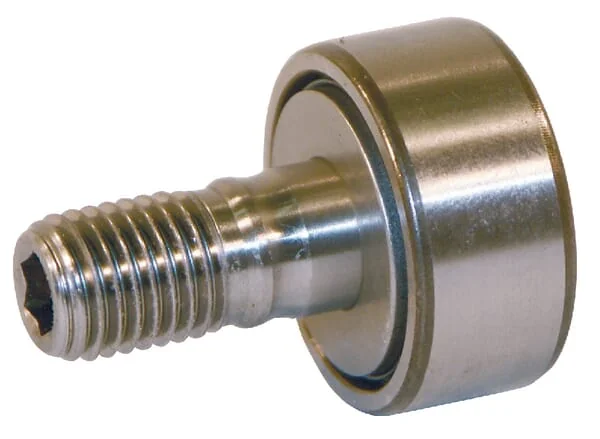

INA FAG - KR32PPA - INA Stud Type Track Roller
INA FAG - KR32PPA - INA Stud Type Track Roller
INA FAG - KR32PPA - INA Stud Type Track Roller
INA FAG - KR32PPA - INA Stud Type Track Roller

In stock - ready to ship

Order now for delivery between 12 May and 15 May
Free shipping on orders over €60

Pay Securely with

INA FAG - KR32PPA - INA Stud Type Track Roller

INA FAG - KR32PPA - INA Stud Type Track Roller

€52.88

(Excl. VAT)

Price

(Excl. VAT)

€52.88

Product Description

The INA-FAG KR32-PP-A is a high-quality stud type track roller, engineered for reliable performance in various industrial and machinery applications. This precision component features an M12x1.5 thread, a 32mm outer diameter, and a 12mm bore, ensuring accurate guidance and support. It is equipped with robust lip seals on both sides to provide excellent protection against contaminants and is pre-lubricated with grease, contributing to a long service life and reduced maintenance requirements. With a dynamic load rating of 6.9 kN and a static load rating of 7.6 kN, it offers robust performance under load.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
CWidth
14 mm
Benefits
Can absorb high radial loads No forces on edges with uneven standing
Properties
Solid shaft with guide bore With axial guidance via driving discs NMT add-on: equipped with a nut
BTotal length
40 mm
B2Shaft length
25 mm
Inside diameter
12 mm
d1Shaft diameter
12 mm
Application range
Packaging machines Transport systems Roll-up doors Roller tensioners
DOutside diameter
32 mm
Bearing model type
Stud type track rollers
GMounting thread pitch
1.50 mm
Max working temperature
100 °C
Min working temperature
-30 °C
Basic radial load static
9300 N
IGMounting thread length
13 mm
Basic radial load dynamic
7100 N
GMounting thread diameter
M12
Manufacturer
INA/FAG
