INA FAG - KR35PPA - Stud Type Track Roller
INA FAG - KR35PPA - Stud Type Track Roller
INA FAG - KR35PPA - Stud Type Track Roller
INA FAG - KR35PPA - Stud Type Track Roller

In stock - ready to ship

Order now for delivery between 19 May and 22 May
Free shipping on orders over €60

Pay Securely with

INA FAG - KR35PPA - Stud Type Track Roller

INA FAG - KR35PPA - Stud Type Track Roller

€46.89

(Excl. VAT)

Price

(Excl. VAT)

€46.89

Product Description

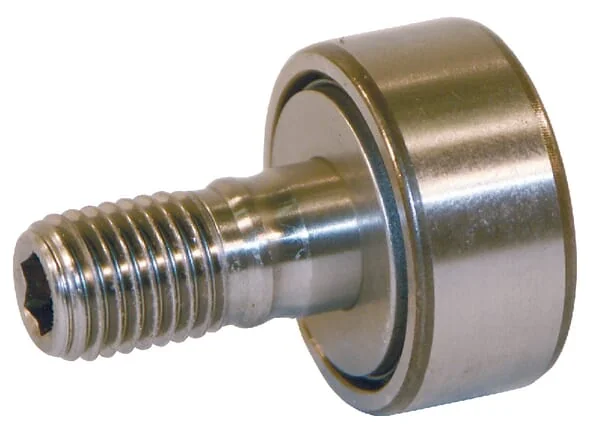

The INA KR35-PP-A is a high-quality stud type track roller featuring a 35mm outer diameter and an M14x1.5 stud thread. Designed with a full complement cylindrical roller set and axial guidance of the outer ring on the stud, it ensures reliable operation. It includes PP seals on both sides for enhanced protection against contaminants and is pre-lubricated with lithium soap grease, with relubrication possible via the stud. This robust track roller has a dynamic load rating of 8.5 kN and a static load rating of 10.4 kN, making it suitable for various industrial applications requiring precise guidance and support.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
CWidth
18 mm
Benefits
Can absorb high radial loads No forces on edges with uneven standing
Properties
Solid shaft with guide bore With axial guidance via driving discs NMT add-on: equipped with a nut
BTotal length
52 mm
B2Shaft length
32,5 mm
Inside diameter
16 mm
d1Shaft diameter
16 mm
Application range
Packaging machines Transport systems Roll-up doors Roller tensioners
DOutside diameter
35 mm
Bearing model type
Stud type track rollers
GMounting thread pitch
1.50 mm
Max working temperature
100 °C
Min working temperature
-30 °C
IGMounting thread length
17 mm
GMounting thread diameter
M16
Manufacturer
INA/FAG
