INA FAG - NJ2307EXLTVP2C3 - Cylindrical Roller Bearing

OEM Supplier

SKU: ina-fag-nj2307exltvp2c3

INA FAG - NJ2307EXLTVP2C3 - Cylindrical Roller Bearing

€76.87

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€76.87

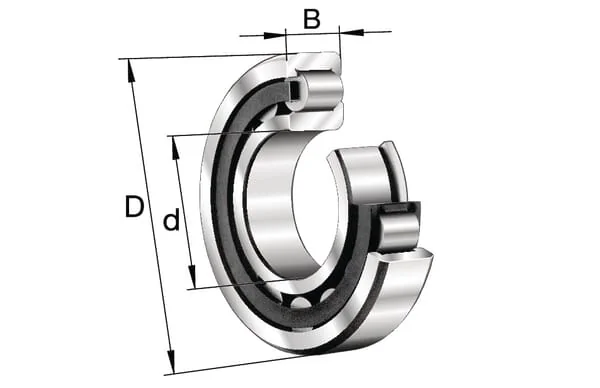

The FAG NJ2307-E-XL-TVP2-C3 is a high-performance single row cylindrical roller bearing from Schaeffler's X-Life series. It features an inner diameter of 35 mm, an outer diameter of 80 mm, and a width of 21 mm. This separable bearing is designed with a C3 radial internal clearance, which is greater than normal, and is equipped with a durable glass fibre reinforced polyamide cage (TVP2). The 'E' designation indicates increased capacity, making it suitable for demanding applications. With a basic dynamic load rating of 90 kN and a basic static load rating of 80 kN, this bearing offers robust performance. It weighs 0.59 kg and is engineered for reliable operation within a temperature range of -30 °C to 120 °C.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,180 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
nj2307exltvp2c3
Unit
Each
BWidth
31 mm
Weight
0,072 kg
Benefits
Correct operating play at high temperature or press fit
Properties
Outer ring with 2 fixed ribs Inner ring with 1 rib Shaft can be closed axially in 1 direction
Consists of
Cylindrical bearing Inner ring NJ
dInside diameter
35 mm
Application range
High radial loads and high speeds Gearbox Gearbox Worm gear shaft Spring plates
DOutside diameter
80 mm
Bearing model type
Cylindrical roller bearings
Max rotation speed
12600 r/min
Ref rotation speed
6600 r/min
Basic radial load static
98000 N
Basic radial load dynamic
108000 N
EAN
4012801381239
Manufacturer
INA/FAG
