INA FAG - PB12 - Sheet Steel Pillow Block Unit

OEM Supplier

SKU: ina-fag-pb12

INA FAG - PB12 - Sheet Steel Pillow Block Unit

€23.27

(excl. VAT)

In stock - ready to ship

Ships within 83 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€23.27

The INA PB12 is a robust sheet steel pillow block unit designed for easy mounting and reliable performance. This genuine INA bearing unit features a 12mm bore diameter, making it suitable for various industrial and agricultural applications requiring a compact and efficient bearing solution. Constructed from high-quality sheet steel, the PB12 offers durability and resistance to operational stresses, ensuring a long service life.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
pb12
Unit
Each
Weight
0,17 kg
Properties
Housing components rust-resistant through Corrotect N coating Inner bearing has one-sided extended inner ring with clamp ring No subsequent lubrication possible
Consists of
2 halves of housing Clamp bearing Clamp ring
Housing type
Pillow block

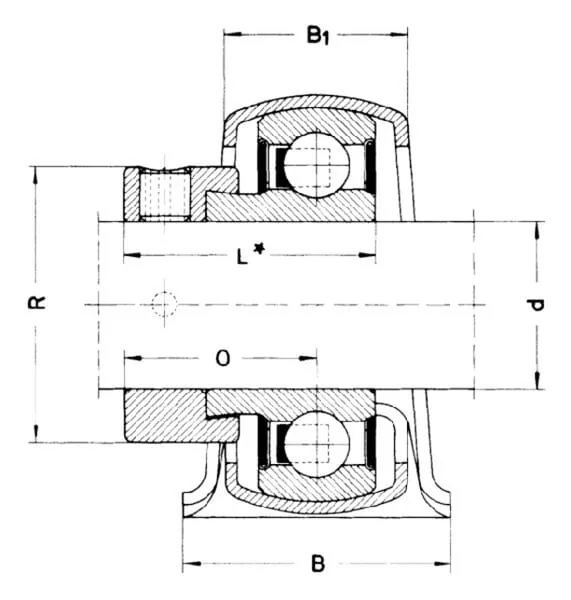

HTotal height
43,2 mm
WTotal length
85,7 mm
BHousing width
25,4 mm
Mounting holes distance
68 mm
AShaft vertical distance
22,2 mm
Basic radial load static
4750 N
dBearing inside diameter
12 mm
Basic radial load dynamic
9800 N
L*Bearing inner ring width
28,6 mm
ØKMounting holes diameter
9,5 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
28 mm
OBearing balls distance to mounting surface
22,1 mm
EAN
4012802792966
Manufacturer
INA/FAG
