INA FAG - RSHE50N - Pillow Block

OEM Supplier

SKU: ina-fag-rshe50n

INA FAG - RSHE50N - Pillow Block

€91.21

(excl. VAT)

In stock - ready to ship

Ships within 96 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€91.21

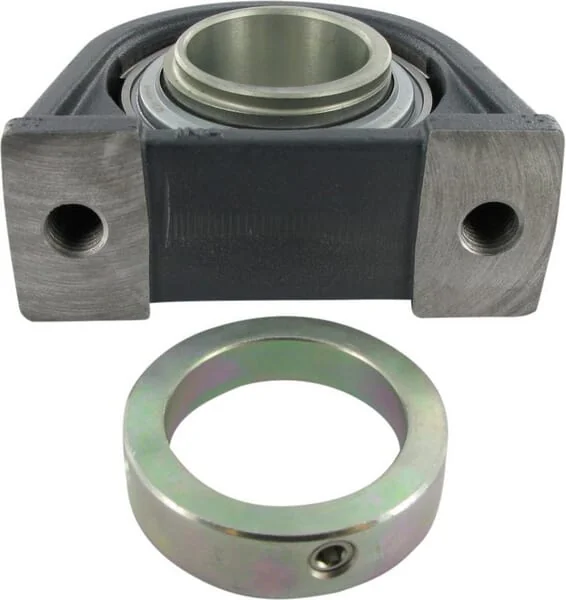

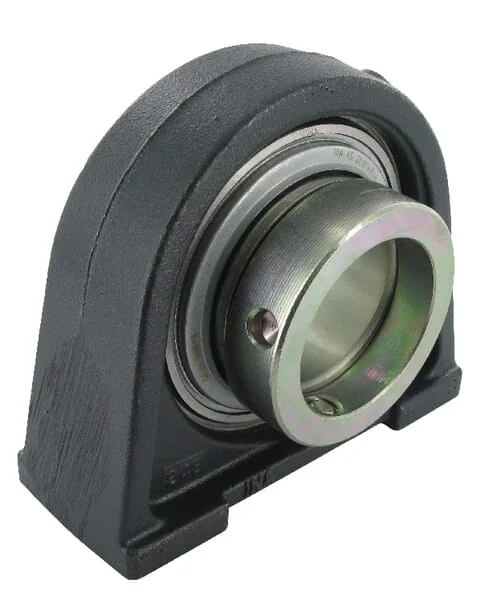

The INA-FAG RSHE50-N is a genuine cast iron pillow block housing unit designed for 50mm shafts. This robust housing provides reliable support for various industrial applications, ensuring stable operation and easy mounting. It is engineered for durability and performance in demanding environments.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
rshe50n
Unit
Each
Weight
2,48 kg
Benefits
Low space requirement
Properties
Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Consists of
Bearing block Clamp ring
Housing type
Pillow block - short
Total length
135 mm
HTotal height
115 mm
AHousing width
54 mm
Mounting holes distance
101,6 mm
HShaft vertical distance
57,2 mm
Mounting thread diameter
M16
dBearing inside diameter
50 mm
BBearing inner ring width
62,8 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
69 mm
OBearing balls distance to mounting surface
38,1 mm
EAN
4012802835854
Manufacturer
INA/FAG
