INA FAG - RSHEY20N - Pillow Block

OEM Supplier

SKU: ina-fag-rshey20n

INA FAG - RSHEY20N - Pillow Block

€33.27

(excl. VAT)

In stock - ready to ship

Ships within 82 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€33.27

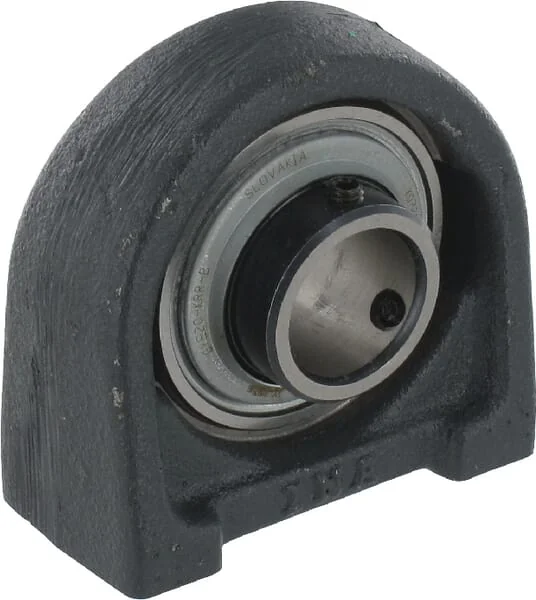

The INA-FAG RSHEY20-N is a high-quality pillow block bearing unit, designed for reliable performance in various industrial and agricultural machinery. This unit includes a robust cast iron housing and an insert bearing, providing a complete and ready-to-mount solution. It is engineered to accommodate radial and axial loads, ensuring smooth operation and extended service life. The RSHEY20-N is a genuine INA-FAG component, known for its precision and durability.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
rshey20n
Unit
Each
Weight
0,44 kg
Benefits
Low space requirement
Properties
Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Consists of
Bearing block Clamp ring
Housing type
Pillow block - short
Total length
65 mm
HTotal height
64 mm
AHousing width
32 mm
Flange thickness
22 mm
Mounting holes distance
50,8 mm
HShaft vertical distance
64 mm
Mounting thread diameter
M8
dBearing inside diameter
20 mm
BBearing inner ring width
31 mm
Grease nipple thread diameter
M6
OBearing balls distance to mounting surface
18,3 mm
EAN
4012802805659
Manufacturer
INA/FAG
