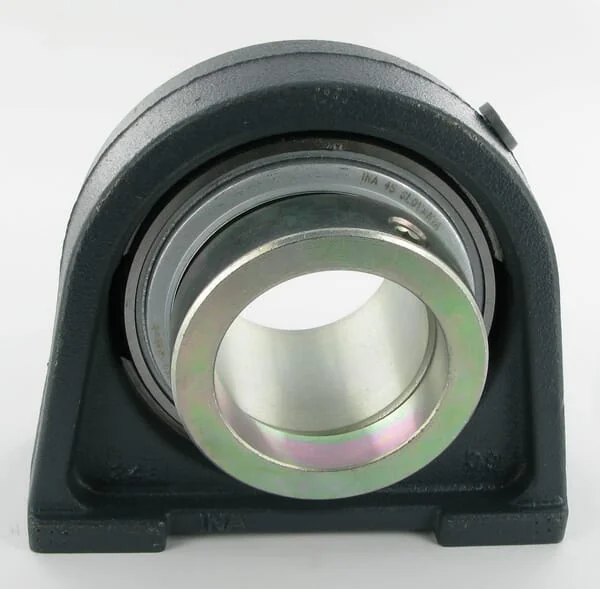

INA FAG - RSHE45 - Pillow Block Standing Diameter 45 Clamping Ring

OEM Supplier

SKU: ina-fag-rshe45

INA FAG - RSHE45 - Pillow Block Standing Diameter 45 Clamping Ring

€85.38

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€85.38

The INA RSHE45 is a robust flanged housing unit designed for secure mounting on vertical surfaces. This genuine INA component features a 45mm bore, making it suitable for shafts of the same diameter. Constructed from durable cast iron, it ensures reliable performance and longevity in demanding industrial and agricultural applications. The unit's design allows for easy installation and maintenance, providing a stable bearing support.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
rshe45
Unit
Each
Weight
2,12 kg
Benefits
Low space requirement
Properties
Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Consists of
Bearing block Clamp ring
Housing type
Pillow block - short
Total length
120 mm
HTotal height
107 mm
AHousing width
48 mm
Mounting holes distance
95,3 mm
HShaft vertical distance
54 mm
Mounting thread diameter
M12
dBearing inside diameter
45 mm
BBearing inner ring width
56,5 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
63 mm
OBearing balls distance to mounting surface
34,9 mm
EAN
4012802791679
Manufacturer
INA/FAG
