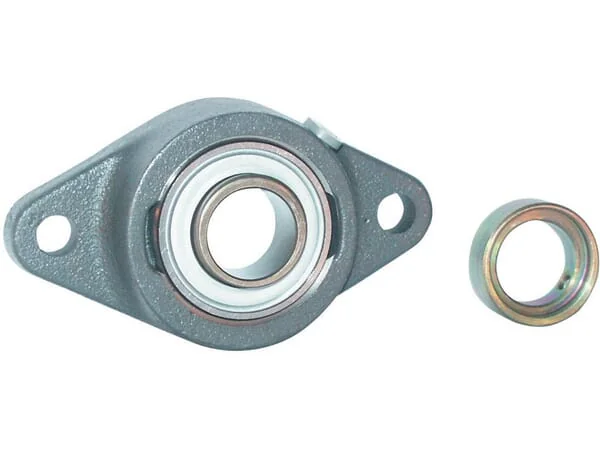

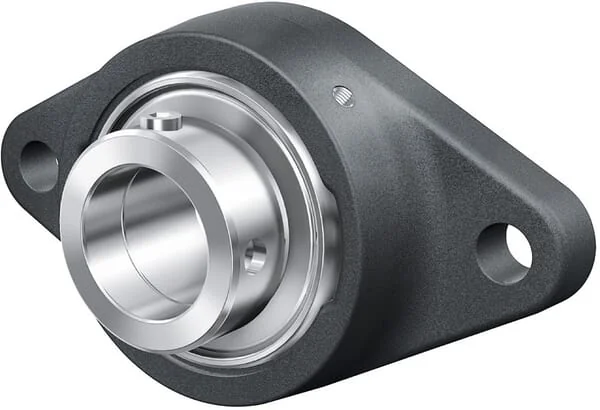

INA FAG - PCFT17XL - Flanged Bearing Unit
INA FAG - PCFT17XL - Flanged Bearing Unit
INA FAG - PCFT17XL - Flanged Bearing Unit
INA FAG - PCFT17XL - Flanged Bearing Unit
INA FAG - PCFT17XL - Flanged Bearing Unit

In stock - ready to ship

Order now for delivery between 14 May and 18 May
Free shipping on orders over €60

Pay Securely with

INA FAG - PCFT17XL - Flanged Bearing Unit

INA FAG - PCFT17XL - Flanged Bearing Unit

€27.95

(Excl. VAT)

Price

(Excl. VAT)

€27.95

Product Description

The INA-FAG PCFT17XL is a high-quality flanged bearing unit designed for robust performance in various industrial and agricultural machinery. This genuine INA-FAG component, part of the Schaeffler Group, features a durable grey cast iron housing and a precise 17mm bore diameter, ensuring reliable operation and strong support. Key technical specifications include an overall flange width of 86mm, an overall unit height of 65mm, and a distance between bolt holes of 64mm, making it suitable for demanding applications requiring a compact and sturdy bearing solution.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Pros
Small installation space self-aligning
Unit
Each
Weight
0,33 kg
Benefits
Low space requirement
Includes
Bearing block Tightening washer
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
ATotal width
32,1 mm
Housing type
Oval flange
Total length
57 mm
Housing width
99 mm
UTotal height
32,1 mm
Basic radial load static
4750 N
dBearing inside diameter
17 mm
Basic radial load dynamic
9800 N
Grease nipple thread diameter
M6
Manufacturer
INA/FAG
