INA FAG - RAT12 - Sheet Steel Flanged Bearing Unit

OEM Supplier

SKU: ina-fag-rat12

INA FAG - RAT12 - Sheet Steel Flanged Bearing Unit

€23.41

(excl. VAT)

In stock - ready to ship

Ships within 90 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€23.41

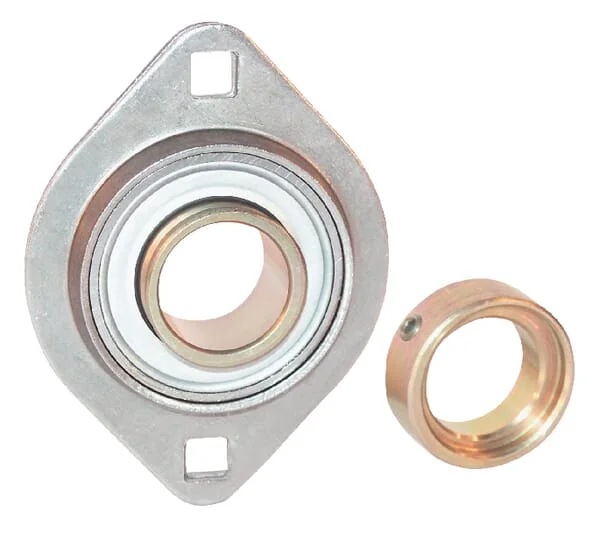

The INA-FAG RAT12 is a high-quality sheet steel flanged bearing unit designed for reliable performance in various industrial and agricultural applications. Featuring a 12mm bore diameter, an overall flange diameter of 47mm, and an overall height of 17mm, this compact unit offers efficient rotational support. Manufactured by INA-FAG (Schaeffler), it ensures precision and durability.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
rat12
Unit
Each
Weight
0,21 kg
Properties
Housing components rust-resistant through Corrotect N coating Inner bearing has one-sided extended inner ring with clamp ring No subsequent lubrication possible
Consists of
2 halves of housing Clamp bearing Clamp ring
Housing type
Oval flange
Total height
24 mm
Total length
58,7 mm
AHousing width
81 mm
Mounting holes length
7,1 mm
Bearing inside diameter
12 mm
Basic radial load static
4750 N
Bearing inner ring width
28,6 mm
MMounting holes distance
63,5 mm
Basic radial load dynamic
9800 N
Grease nipple thread diameter
M6
Locking ring outside diameter
28 mm
EAN
4012802793420
Manufacturer
INA/FAG
