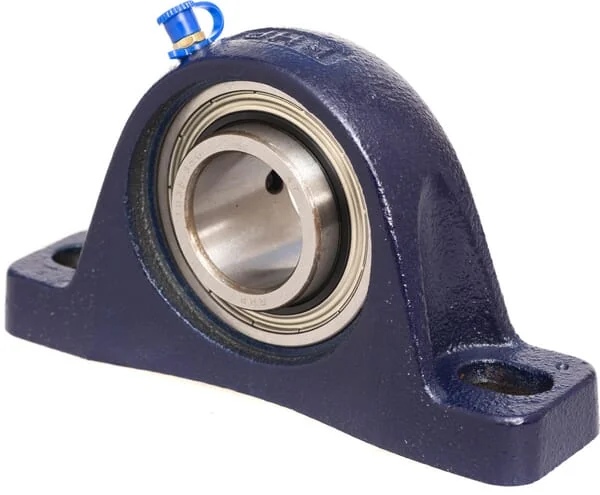

INA FAG - RASEY55 - Pillow Block

OEM Supplier

SKU: ina-fag-rasey55

INA FAG - RASEY55 - Pillow Block

€83.64

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€83.64

The INA-FAG RASEY55 is a high-quality pillow block bearing unit designed for robust performance in industrial machinery. This genuine INA-FAG unit features a 55mm bore diameter and is pre-lubricated and sealed, ensuring reliable operation and extended service life. It is commonly used in agricultural, construction, and general industrial applications requiring shaft support and alignment.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
rasey55
OEM Part Numbers
Unit
Each
Weight
3,22 kg
Properties
Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Housing type
Pillow block
HTotal height
124,5 mm
WTotal length
222 mm
BHousing width
60 mm
CFlange thickness
12 mm
Mounting holes length
12 mm
Mounting holes distance
176 mm
AShaft vertical distance
63,5 mm
KMounting holes diameter
16,6 mm
dBearing inside diameter
55 mm
LBearing inner ring width
55,6 mm
Grease nipple thread diameter
M6
OBearing balls distance to mounting surface
33,4 mm
EAN
4012802802887
Manufacturer
INA/FAG
