INA FAG - PCFT30 - Housing Unit PCFT
INA FAG - PCFT30 - Housing Unit PCFT
INA FAG - PCFT30 - Housing Unit PCFT
INA FAG - PCFT30 - Housing Unit PCFT
INA FAG - PCFT30 - Housing Unit PCFT
INA FAG - PCFT30 - Housing Unit PCFT

In stock - ready to ship

Order now for delivery between 16 May and 20 May
Free shipping on orders over €60

Pay Securely with

INA FAG - PCFT30 - Housing Unit PCFT

INA FAG - PCFT30 - Housing Unit PCFT

€37.84

(Excl. VAT)

Price

(Excl. VAT)

€37.84

Product Description

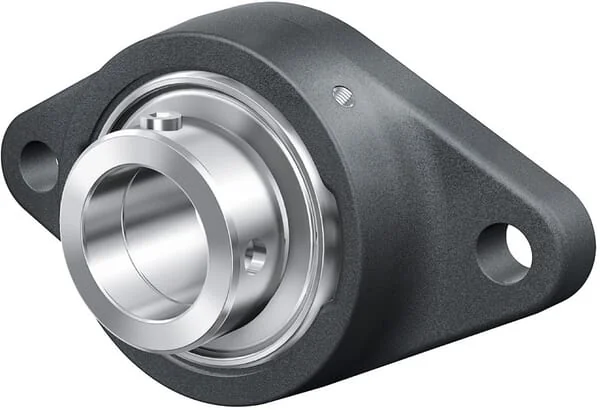

This oval flange bearing block with integrated radial insert bearing is pre-assembled and ready to use. The radial bearing with eccentric locking collar and housing are matched. The flange housing consists of one piece and is resistant to radial and axial loads.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Pros
Small installation space self-aligning
Unit
Each
Weight
0,77 kg
Benefits
Low space requirement
Includes
Bearing block Tightening washer
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
Housing type
Oval flange
Total length
80 mm
Housing width
142 mm
UTotal height
40 mm
THousing height
22,3 mm
Basic radial load static
11300 N
KMounting holes diameter
11,5 mm
MMounting holes distance
116,5 mm
dBearing inside diameter
30 mm
Basic radial load dynamic
19500 N
L*Bearing inner ring width
35,8 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
44 mm
PBearing balls distance to mounting surface
13,3 mm
Manufacturer
INA/FAG
