INA FAG - PCJ50 - Bearing Block
OEM Supplier
SKU: ina-fag-pcj50




€63.69
(excl. VAT)Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Shipping fee: €6.00 excl. VAT
Pay Securely with

INA FAG - PCJ50 - Bearing Block
€63.69
(Excl. VAT)
Price
(Excl. VAT)
€63.69

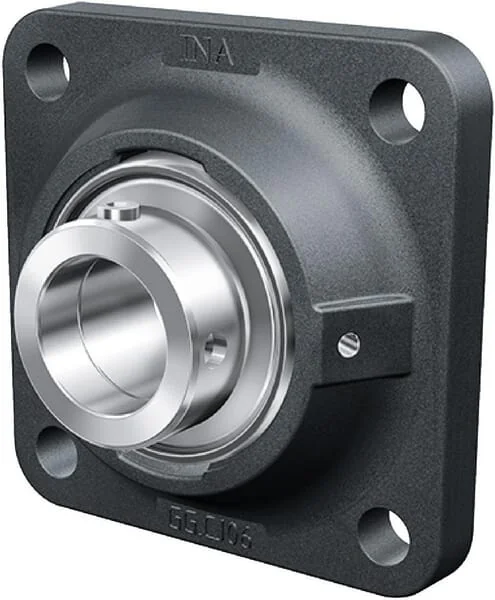

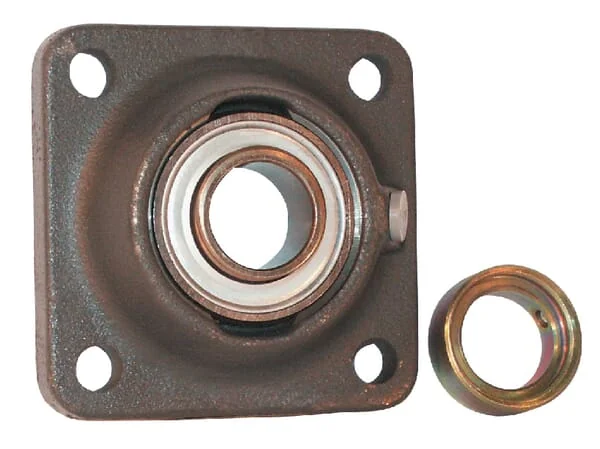

The INA-FAG PCJ50 is a robust cast iron plummer block housing designed to accommodate self-aligning ball bearings or spherical roller bearings with a 50mm shaft diameter. This genuine INA-FAG housing provides reliable support and protection for bearings in demanding industrial environments, ensuring optimal performance and extended service life. Manufactured by Schaeffler, it features precise dimensions for secure mounting and durability.
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components.
The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments.
At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao.
INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.
Product Details
Brand
Part Numbers
pcj50
Unit
Each
Weight
2,38 kg
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
Housing type
Square flange
Total length
143 mm
Housing width
143 mm
UTotal height
60,8 mm
THousing height
39 mm
CFlange thickness
21,5 mm
Mounting holes diameter
18 mm
Basic radial load static
23200 N
MMounting holes distance
111 mm
dBearing inside diameter
50 mm
Basic radial load dynamic
35000 N
LBearing inner ring width
43,7 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
69 mm
Bearing balls distance to locking side end
28 mm
EAN
4012802809374
Manufacturer
INA/FAG
