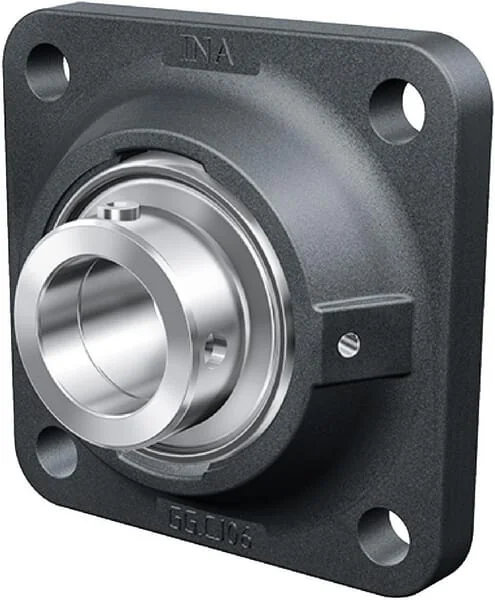

INA FAG - PCJ55 - Housing Unit PCJ

OEM Supplier

SKU: ina-fag-pcj55

INA FAG - PCJ55 - Housing Unit PCJ

€92.05

(excl. VAT)

In stock - ready to ship

Ships within 96 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€92.05

INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
pcj55
Unit
Each
Weight
3,17 kg
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
Housing type
Square flange
Total length
162 mm
Housing width
162 mm
UTotal height
67,4 mm
THousing height
43,5 mm
CFlange thickness
21,5 mm
Mounting holes diameter
18 mm
Basic radial load static
29000 N
MMounting holes distance
130 mm
dBearing inside diameter
55 mm
Basic radial load dynamic
46000 N
LBearing inner ring width
48,4 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
76 mm
Bearing balls distance to locking side end
31 mm
EAN
4064327016744
Manufacturer
INA/FAG
