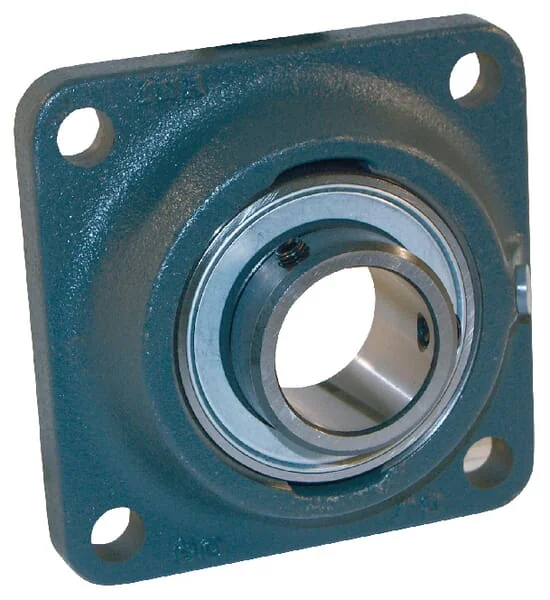

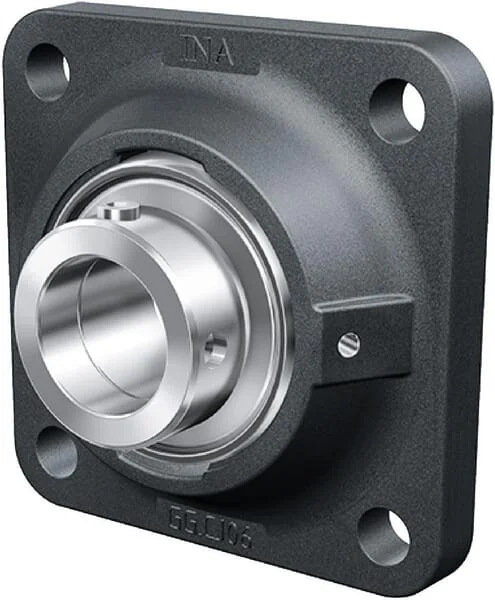

INA FAG - PCJY45 - Square Bearing Block, PCJY

OEM Supplier

SKU: ina-fag-pcjy45

INA FAG - PCJY45 - Square Bearing Block, PCJY

€58.19

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€58.19

INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Unit
Each
Weight
2,15 kg
Properties
• Inner bearing has one-sided extended inner ring with 2 adjusting screws Can be subsequently lubricated
Total width
54,5 mm
Housing type
Square flange
ATotal length
137 mm
Housing width
137 mm
UTotal height
54,5 mm
THousing height
35 mm
CFlange thickness
12 mm
Mounting holes distance
105 mm
Basic radial load static
20400 N
dBearing inside diameter
45 mm
Basic radial load dynamic
34500 N
LBearing inner ring width
41,5 mm
Grease nipple thread diameter
M6
Bearing balls distance to locking side end
24 mm
EAN
4054372939549
Manufacturer
INA/FAG
