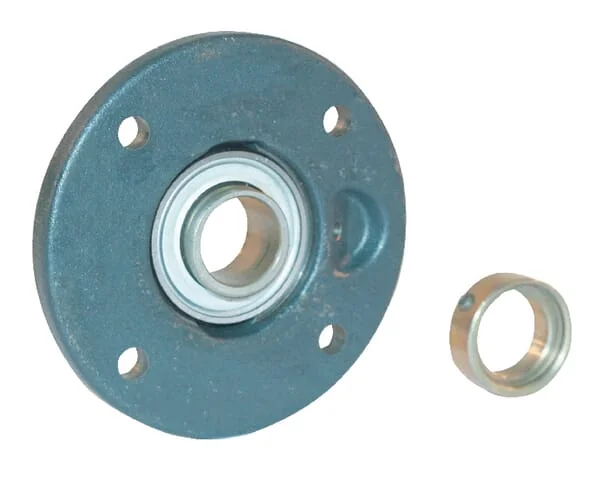

INA FAG - PME25 - Bearing Block
INA FAG - PME25 - Bearing Block
INA FAG - PME25 - Bearing Block
INA FAG - PME25 - Bearing Block
INA FAG - PME25 - Bearing Block
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

INA FAG - PME25 - Bearing Block

INA FAG - PME25 - Bearing Block

€38.77

(Excl. VAT)

Price

(Excl. VAT)

€38.77

Product Description

The INA-FAG PME25 is a high-quality bearing block housing unit, specifically designed to accommodate bearings with a 25 mm bore diameter. This robust housing ensures reliable performance and protection for the bearing in various industrial and agricultural machinery applications. Manufactured by INA-FAG, a trusted brand in bearing technology, it provides durable support and easy installation.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Part Numbers
pme25
Unit
Each
Weight
0,73 kg
Benefits
Precise axis alignment possible Fixing points are relieved
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
Bearing block Clamp ring
Total width
31 mm
Housing type
Round flange
Total height
21 mm
Housing width
115 mm
Housing height
19 mm
Bearing material
Steel
CFlange thickness
19 mm
Fitting edge diameter
70 mm
Basic radial load static
7800 N
KMounting holes diameter
9 mm
dBearing inside diameter
25 mm
Basic radial load dynamic
14900 N
L*Bearing inner ring width
31 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
37,5 mm
MMounting holes/bolts circle diameter
90 mm
EAN
4012802837629
Manufacturer
