INA FAG - PME35 - Bearing Block
OEM Supplier
SKU: ina-fag-pme35




€56.53
(excl. VAT)Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Shipping fee: €6.00 excl. VAT
Pay Securely with

INA FAG - PME35 - Bearing Block
€56.53
(Excl. VAT)
Price
(Excl. VAT)
€56.53

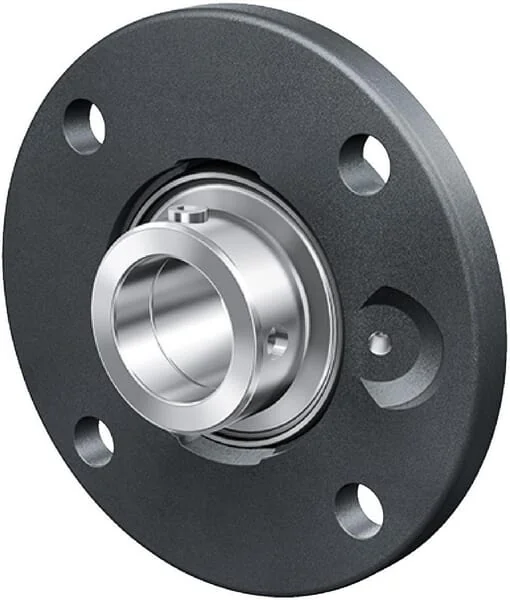

The INA-FAG PME35 is a robust bearing block designed for secure and precise mounting of shafts. This genuine INA-FAG component provides excellent support and stability, crucial for machinery requiring reliable bearing solutions. It is engineered to accommodate specific shaft diameters, ensuring optimal fit and function in industrial environments. Constructed for durability, the PME35 bearing block contributes to the longevity and efficiency of mechanical systems.
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components.
The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments.
At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao.
INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.
Product Details
Brand
Part Numbers
pme35
Unit
Each
Weight
1,27 kg
Benefits
Precise axis alignment possible Fixing points are relieved
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
Bearing block Clamp ring
Total width
39 mm
Housing type
Round flange
Total height
28,5 mm
Housing width
135 mm
Housing height
20,5 mm
Bearing material
Steel
CFlange thickness
22 mm
Fitting edge diameter
90 mm
Basic radial load static
15300 N
KMounting holes diameter
11,5 mm
dBearing inside diameter
35 mm
Basic radial load dynamic
25500 N
L*Bearing inner ring width
39 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
51 mm
EAN
4012802837445
Manufacturer
INA/FAG
