INA FAG - PSHE40 - Bearing Block

OEM Supplier

SKU: ina-fag-pshe40

INA FAG - PSHE40 - Bearing Block

€66.72

(excl. VAT)

In stock - ready to ship

Ships within 93 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€66.72

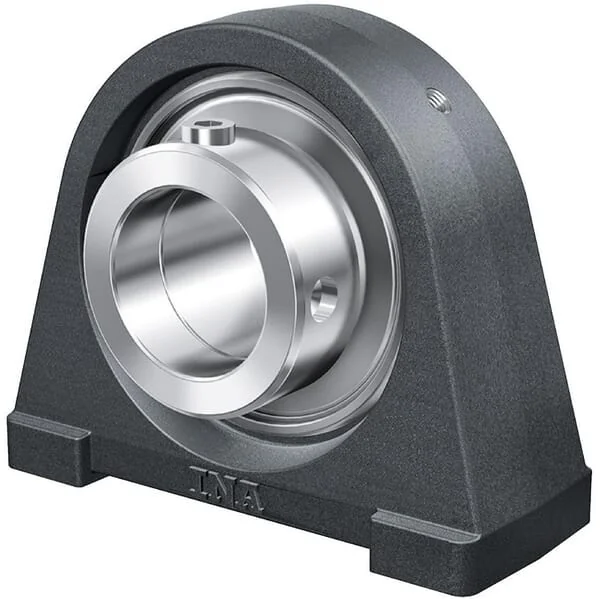

The INA-FAG PSHE40 is a high-quality pillow block bearing unit designed for reliable performance in various industrial and agricultural applications. Featuring a 40mm bore diameter, this robust unit provides excellent support and smooth rotation. It has an overall length of 170mm, a width of 51mm, and a height of 95mm. With a dynamic load rating of 29.1 kN and a static load rating of 17.8 kN, it is built to withstand significant loads. The unit weighs 1.2 kg and has a limiting speed of 3800 RPM, ensuring durability and efficiency in demanding environments. Mounting is facilitated by 14mm diameter bolt holes with a 130mm center distance.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
pshe40
Unit
Each
Weight
1,54 kg
Benefits
Low space requirement
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated

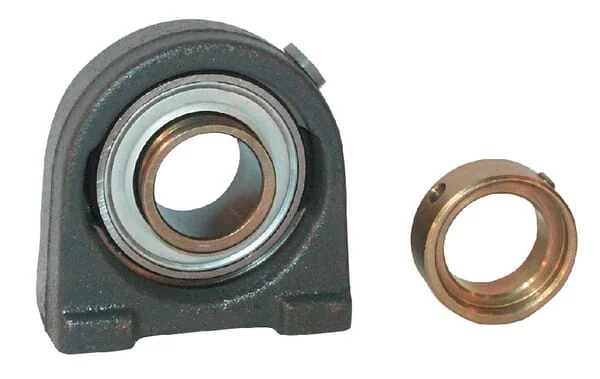

Consists of
• Bearing block Clamp ring
Total width
48 mm
Housing type
Pillow block - short
Total length
116 mm
HTotal height
99 mm
BHousing width
48 mm
Flange thickness
20 mm
Mounting holes distance
88,9 mm
AShaft vertical distance
49,2 mm
Mounting thread diameter
M12
dBearing inside diameter
40 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
58 mm
OBearing balls distance to mounting surface
32,7 mm
EAN
4054372514210
Manufacturer
INA/FAG
