INA FAG - PSHE55 - INA Pillow Block

OEM Supplier

SKU: ina-fag-pshe55

INA FAG - PSHE55 - INA Pillow Block

€99.64

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€99.64

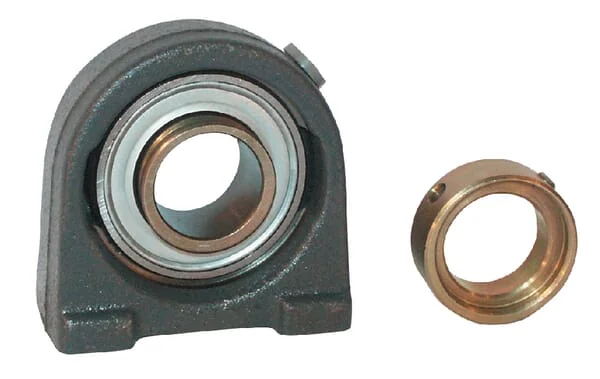

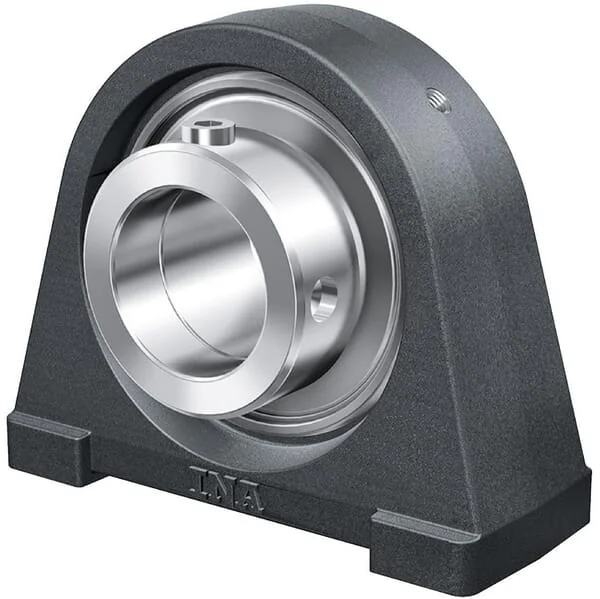

The INA-FAG PSHE55 is a robust, genuine cast iron plummer block housing unit designed to accommodate bearings with a 55 mm bore diameter. This durable housing provides reliable support and protection for various industrial applications, ensuring optimal performance and extended bearing life. Key dimensions include an overall length of 200 mm, a height of 115 mm, and a width of 60 mm. It features bolt holes with a 19 mm diameter, spaced 159 mm apart, and has a shaft center height of 63.5 mm.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
pshe55
Unit
Each
Weight
3,48 kg
Benefits
Low space requirement
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
Total width
60 mm
Housing type
Pillow block - short
Total length
150 mm
HTotal height
125 mm
BHousing width
60 mm
Flange thickness
13 mm
Mounting holes distance
118 mm
AShaft vertical distance
64 mm
Mounting thread diameter
M16
dBearing inside diameter
55 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
76 mm
OBearing balls distance to mounting surface
36,4 mm
EAN
4012802817478
Manufacturer
INA/FAG
