INA FAG - RAT35 - Bearing Block

OEM Supplier

SKU: ina-fag-rat35

INA FAG - RAT35 - Bearing Block

€38.28

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€38.28

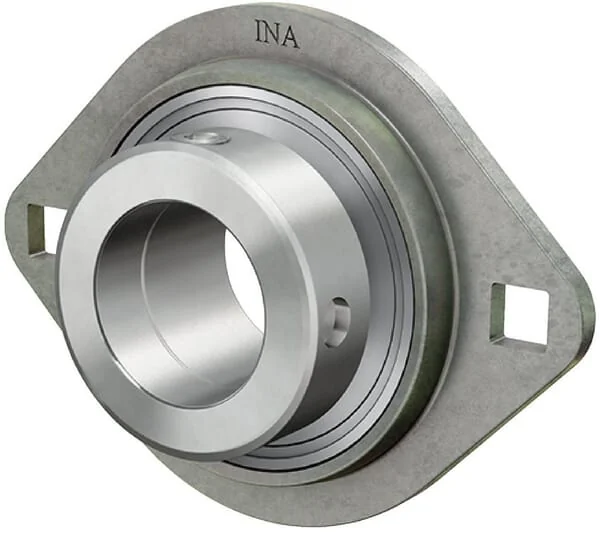

The INA-FAG RAT35 is a high-quality bearing block, specifically designed for robust performance in agricultural machinery applications. This genuine INA-FAG component ensures reliable support and smooth operation for rotating shafts. With an inner diameter of 35 mm, a length of 95 mm, a width of 28 mm, and a height of 51 mm, it is engineered for durability and extended service life in demanding environments. Weighing 0.12 kg, this bearing block is a critical component for various farm equipment, including combine harvesters and balers, providing secure mounting and reducing maintenance needs.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
rat35
Unit
Each
Properties
Housing components rust-resistant through Corrotect N coating Inner bearing has one-sided extended inner ring with clamp ring No subsequent lubrication possible
Consists of

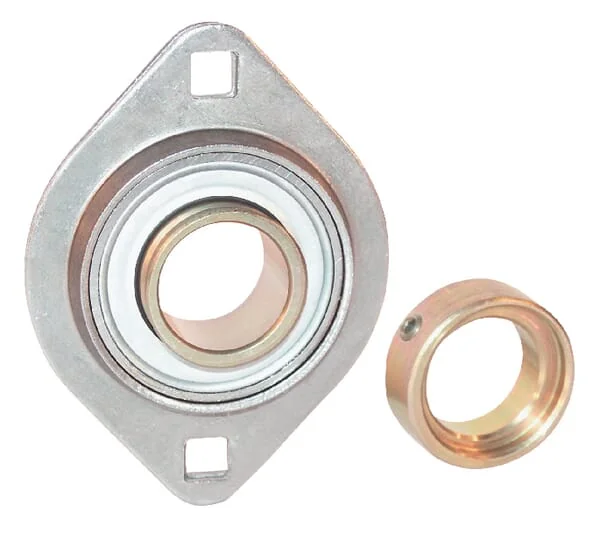

2 halves of housing Clamp bearing Clamp ring
Housing type
Oval flange
Total height
31,5 mm
Total length
94 mm
AHousing width
123 mm
Mounting holes length
10,5 mm
Bearing inside diameter
35 mm
Basic radial load static
15300 N
Bearing inner ring width
38,9 mm
MMounting holes distance
100 mm
Basic radial load dynamic
27500 N
Grease nipple thread diameter
M6
Locking ring outside diameter
51 mm
EAN
4012802793307
Manufacturer
INA/FAG
