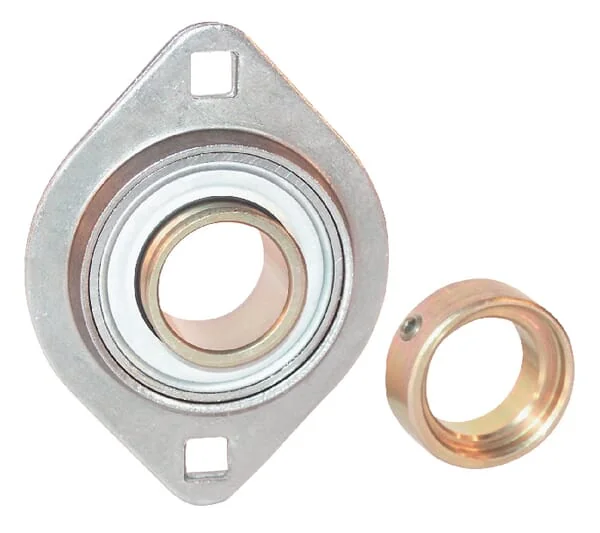

INA FAG - RAT40 - Bearing and Flange 2 Holes
INA FAG - RAT40 - Bearing and Flange 2 Holes
INA FAG - RAT40 - Bearing and Flange 2 Holes
INA FAG - RAT40 - Bearing and Flange 2 Holes
INA FAG - RAT40 - Bearing and Flange 2 Holes

In stock - ready to ship

Order now for delivery between 14 May and 18 May
Free shipping on orders over €60

Pay Securely with

INA FAG - RAT40 - Bearing and Flange 2 Holes

INA FAG - RAT40 - Bearing and Flange 2 Holes

€42.86

(Excl. VAT)

Price

(Excl. VAT)

€42.86

Product Description

The INA-FAG RAT40 is a genuine bearing with a two-hole flange, designed for robust industrial and agricultural applications. It features a 40mm inner diameter, 100mm outer diameter, and an overall width of 30mm. The flange has a height of 10mm and a thickness of 10mm, with a mounting hole distance of 100mm and 12mm diameter holes for secure attachment. This high-quality component ensures reliable performance in demanding environments.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
Weight
0,99 kg
Properties
Housing components rust-resistant through Corrotect N coating Inner bearing has one-sided extended inner ring with clamp ring No subsequent lubrication possible
Consists of
2 halves of housing Clamp bearing Clamp ring
Housing type
Oval flange
Total height
36,2 mm
Total length
100 mm
AHousing width
151 mm
Mounting holes length
13,5 mm
Bearing inside diameter
40 mm
Basic radial load static
19800 N
Bearing inner ring width
43,7 mm
MMounting holes distance
119 mm
Basic radial load dynamic
34500 N
Grease nipple thread diameter
M6
Locking ring outside diameter
58 mm
Manufacturer
INA/FAG
