INA FAG - RCJ65 - Housing Unit Rcj
OEM Supplier
SKU: ina-fag-rcj65




€222.96
(excl. VAT)In stock - ready to ship
Ships within 96 hours
Shipping fee: €6.00 excl. VAT
Pay Securely with

INA FAG - RCJ65 - Housing Unit Rcj
€222.96
(Excl. VAT)
Price
(Excl. VAT)
€222.96
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components.
The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments.
At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao.
INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.
Product Details
Brand
Unit
Each
Weight
5,71 kg
Properties

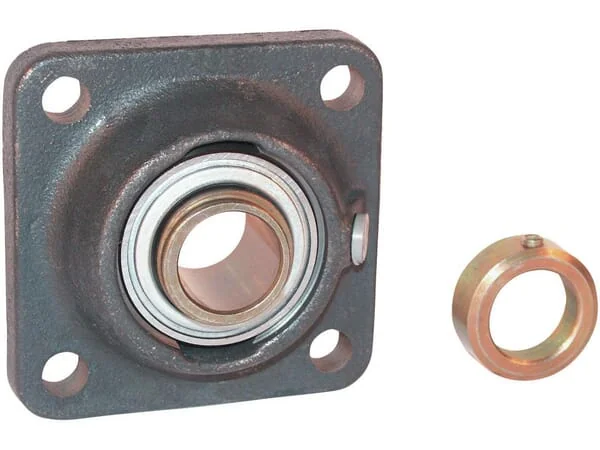

Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
Housing type
Square flange
Total length
188 mm
Housing width
188 mm
UTotal height
82,6 mm
THousing height
52 mm
CFlange thickness
13 mm
Mounting holes diameter
18 mm
Basic radial load static
44000 N
MMounting holes distance
150 mm
dBearing inside diameter
65 mm
Basic radial load dynamic
66000 N
LBearing inner ring width
66 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
96 mm
Bearing balls distance to locking side end
38 mm
EAN
4012802795226
Manufacturer
INA/FAG
