INA FAG - RCJO60 - Square Bearing Block

OEM Supplier

SKU: ina-fag-rcjo60

INA FAG - RCJO60 - Square Bearing Block

€250.23

(excl. VAT)

In stock - ready to ship

Ships within 80 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€250.23

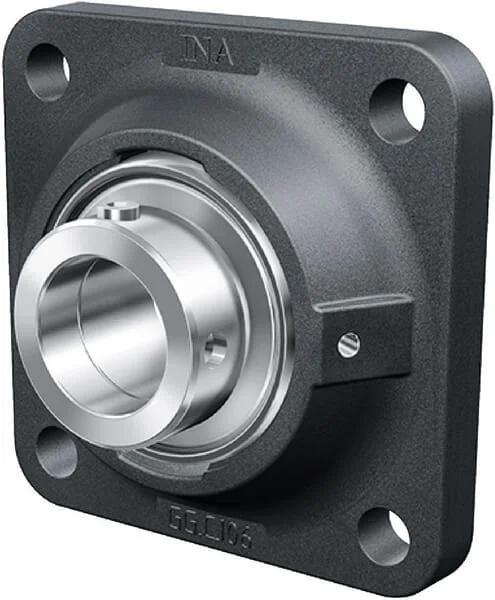

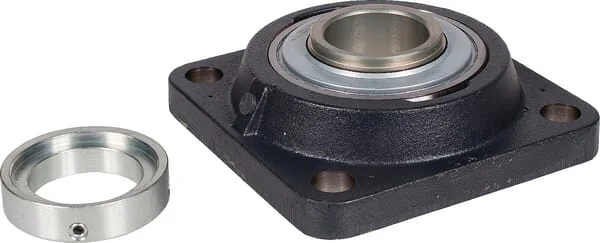

The INA RCJO60 is a genuine square flanged ball bearing unit manufactured by INA (Schaeffler Group). This robust unit features a cast iron housing and a self-aligning ball bearing insert, designed for reliable performance in industrial machinery. It has a 60mm bore diameter and is pre-lubricated for immediate use, offering a dynamic load rating of 47.5 kN and a static load rating of 29.5 kN.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
rcjo60
Unit
Each
Weight
6,73 kg
Properties
Inner bearing has extended inner ring with clamp ring on both sides Subsequent lubrication possible
Consists of
Bearing block Clamp ring
Housing type
Square flange
Housing width
195 mm
UTotal height
78,4 mm
Application range
Mobile mechanical engineering Stationary mechanical engineering
Basic radial load static
52000 N
dBearing inside diameter
60 mm
Basic radial load dynamic
82000 N
Grease nipple thread diameter
M6
EAN
4012802803105
Manufacturer
INA/FAG
