INA FAG - RCJT30NFA125 - Flanged Bearing Unit

OEM Supplier

SKU: ina-fag-rcjt30nfa125

INA FAG - RCJT30NFA125 - Flanged Bearing Unit

€58.70

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€58.70

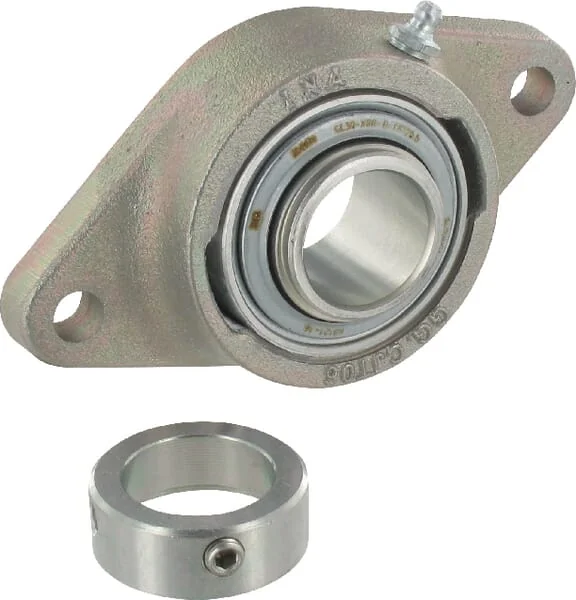

The INA-FAG RCJT30-N-FA125 is a high-quality flanged bearing unit designed for reliable performance in industrial machinery. This unit features a robust cast iron housing and a 30 mm bore diameter, ensuring precise fitment and efficient operation. It is pre-lubricated and sealed, offering maintenance-free service and protection against contaminants. The flanged design allows for easy mounting and secure attachment, making it a versatile choice for applications requiring durable and compact bearing solutions.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
rcjt30nfa125
Unit
Each
Weight
0,91 kg
Properties
Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Consists of
Bearing block Clamp ring
Housing type
Oval flange
Total length
142 mm
Housing width
80 mm
UTotal height
50,1 mm
Technical info
Addition FA125: additional rust protection
THousing height
29 mm
Basic radial load static
11300 N
KMounting holes diameter
11,5 mm
MMounting holes distance
116,5 mm
dBearing inside diameter
30 mm
Basic radial load dynamic
20700 N
LBearing inner ring width
48,5 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
44 mm
Bearing balls distance to locking side end
20 mm
EAN
4054372495977
Manufacturer
INA/FAG
