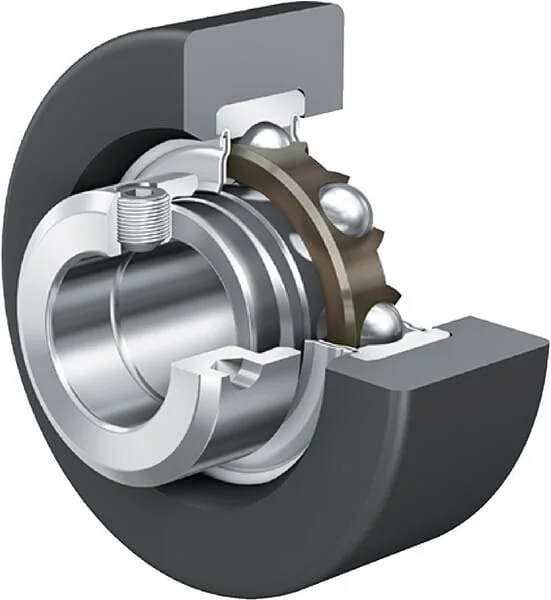

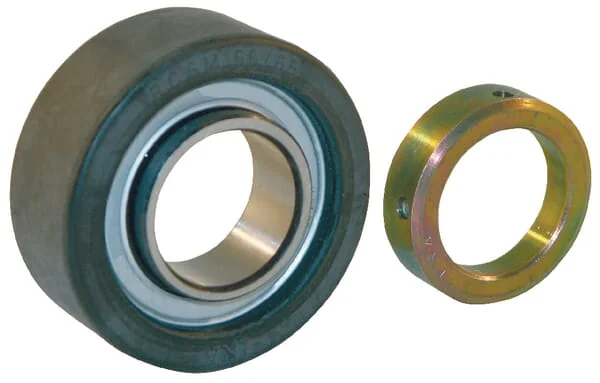

INA FAG - RCSMB2065FA106 - Bearing Insert 20x65.1x25.4mm INA FAG

OEM Supplier

SKU: ina-fag-rcsmb2065fa106

INA FAG - RCSMB2065FA106 - Bearing Insert 20x65.1x25.4mm INA FAG

€33.31

(excl. VAT)

In stock - ready to ship

Ships within 82 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€33.31

INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,179 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Unit
Each
Weight
0,25 kg
Properties
One-sided extended inner ring with clamp ring Flat rubber outer ring P seal Polyamide housing Rubber hardness 70° Shore A
Consists of
Clamp bearing Clamp ring
Outer ring width
25,4 mm
dInside diameter
20 mm
Application range
Mobile mechanical engineering Stationary mechanical engineering
BInner ring width
31 mm
DOutside diameter
65,1 mm
Basic radial load static
6600 N
Basic radial load dynamic
13600 N
Locking collar outside diameter
33 mm
Locking collar and inner ring width
31 mm
Ball centre to inner ring end distance
23,5 mm
Ball centre to outer ring end distance
12,7 mm
EAN
4012802801422
Manufacturer
INA/FAG
