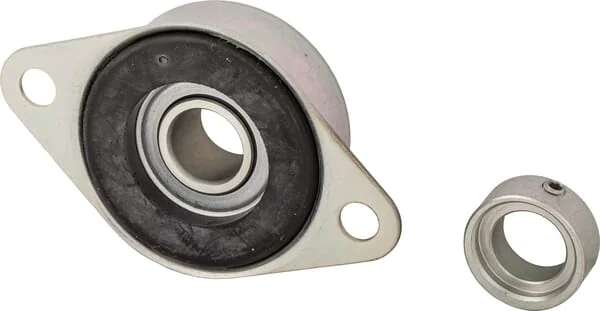

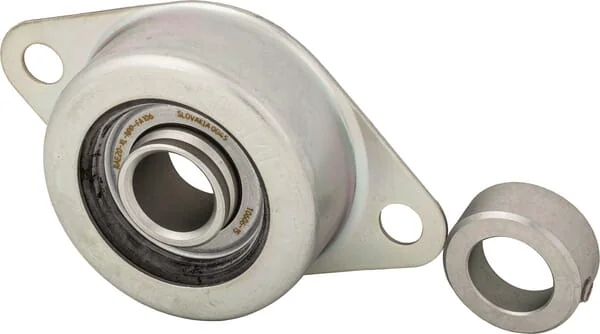

INA FAG - RCSMF20 - Flanged Housing Unit

OEM Supplier

SKU: ina-fag-rcsmf20

INA FAG - RCSMF20 - Flanged Housing Unit

€41.46

(excl. VAT)

In stock - ready to ship

Ships within 82 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€41.46

The INA RCSMF20 is a high-quality flanged housing unit designed for robust performance in various industrial machinery applications. It features a durable cast iron housing and a 20mm bore, ensuring reliable operation. This unit includes a grub screw fixing insert bearing for secure shaft attachment and easy installation. With a flange diameter of 95mm and a mounting hole spacing of 70mm, it provides stable and efficient bearing support. The unit has an overall height of 30.2mm and weighs approximately 0.5 kg. It boasts a dynamic load rating of 12.7 kN and a static load rating of 6.6 kN, making it suitable for demanding conditions. The housing is designated FSMF20, and the bearing is RAE20, typically secured with M8 mounting bolts.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
rcsmf20
Unit
Each
Weight
0,32 kg
Benefits
• Vibration-damping
Properties
Housing components rust-resistant through Corrotect N coating Inner bearing has one-sided extended inner ring with clamp ring No subsequent lubrication possible
Consists of
Bearing housing Clamp bearing Clamp ring
Housing type
Oval flange
Total height
36,2 mm
BTotal length
70 mm
AHousing width
114 mm
Mounting holes distance
92 mm
Basic radial load static
6600 N
KMounting holes diameter
10,5 mm
dBearing inside diameter
20 mm
Basic radial load dynamic
12800 N
LBearing inner ring width
28,6 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
28 mm
PBearing balls distance to mounting surface
12,7 mm
EAN
4012802786873
Manufacturer
INA/FAG
