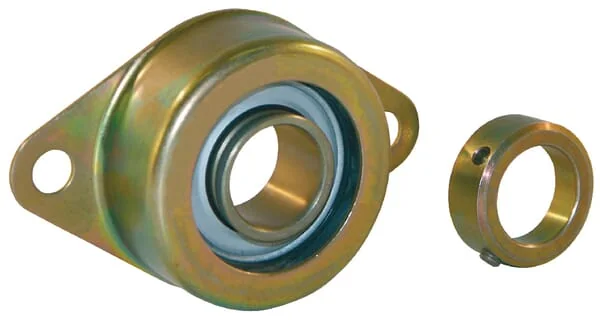

INA FAG - RCSMF25 - Flanged Housing Unit

OEM Supplier

SKU: ina-fag-rcsmf25

INA FAG - RCSMF25 - Flanged Housing Unit

€46.43

(excl. VAT)

In stock - ready to ship

Ships within 81 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€46.43

The INA-FAG RCSMF25 is a robust flanged housing unit designed for reliable performance in various industrial applications. Featuring a 25mm bore diameter and a durable cast iron housing (FSMF05), this unit incorporates an RAE25-XL-NPP-B bearing with an eccentric locking collar for secure shaft attachment. It is a two-bolt rectangular flange unit with a dynamic load rating of 14.9 kN and a static load rating of 7.8 kN, suitable for operating speeds up to 5600 rpm. Its precise dimensions ensure easy installation and compatibility.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
rcsmf25
Unit
Each
Weight
0,34 kg
Benefits
• Vibration-damping
Properties
Housing components rust-resistant through Corrotect N coating Inner bearing has one-sided extended inner ring with clamp ring No subsequent lubrication possible
Consists of
Bearing housing Clamp bearing Clamp ring
Housing type
Oval flange
Total height
36,2 mm
BTotal length
70 mm
AHousing width
114 mm
Mounting holes distance
92 mm
Basic radial load static
7800 N
KMounting holes diameter
10,5 mm
dBearing inside diameter
25 mm
Basic radial load dynamic
14000 N
LBearing inner ring width
31 mm
Grease nipple thread diameter
M6
PBearing balls distance to mounting surface
12,7 mm
EAN
4012802793925
Manufacturer
INA/FAG
