INA FAG - RHE35 - Bearing Block Complete

OEM Supplier

SKU: ina-fag-rhe35

INA FAG - RHE35 - Bearing Block Complete

€62.40

(excl. VAT)

In stock - ready to ship

Ships within 80 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€62.40

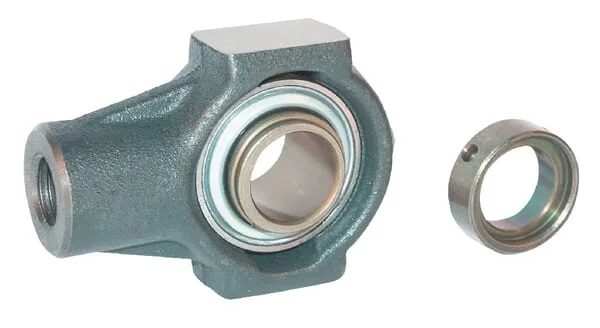

The INA-FAG RHE35 is a complete bearing block unit, manufactured by INA-FAG, a brand known for high-quality rolling bearings and linear motion products. This robust bearing block is engineered for reliable performance in various industrial and agricultural machinery, providing secure housing and support for bearings.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
rhe35
Unit
Each
Weight
1,38 kg
Properties
Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
Total height
51,3 mm
ATotal length
122 mm
MHousing width
90 mm
BHousing height
32 mm
WGuide groove length
49 mm
HShaft vertical distance
76 mm
K1Mounting thread length
24 mm
Mounting thread diameter
M24
dBearing inside diameter
35 mm
LBearing inner ring width
51,3 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
51 mm
OBearing balls distance to mounting surface
32,3 mm
EAN
4012802788488
Manufacturer
INA/FAG
