INA FAG - RTUE30 - Take-up Bearing Unit
INA FAG - RTUE30 - Take-up Bearing Unit
INA FAG - RTUE30 - Take-up Bearing Unit
INA FAG - RTUE30 - Take-up Bearing Unit
INA FAG - RTUE30 - Take-up Bearing Unit
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

INA FAG - RTUE30 - Take-up Bearing Unit

INA FAG - RTUE30 - Take-up Bearing Unit

€50.90

(Excl. VAT)

Price

(Excl. VAT)

€50.90

Product Description

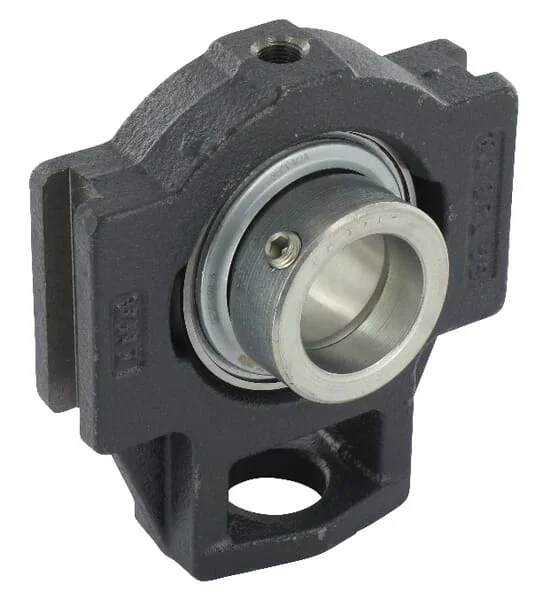

The INA RTUE30 is a high-quality take-up bearing unit from Schaeffler, designed for reliable performance in diverse industrial machinery. This ready-to-fit unit features a 30mm bore radial insert ball bearing housed within a robust cast iron housing. It is equipped with contact seals on both sides for enhanced protection against contaminants, making it suitable for both locating and non-locating bearing applications. Key dimensions include an overall length of 165mm, an overall height of 115mm, and a weight of approximately 1.2 kg.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
Weight
1,25 kg
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
Total width
102 mm
Total height
102 mm
ATotal length
114,5 mm
VHousing width
48,5 mm
Flange thickness
12 mm
dBearing inside diameter
30 mm
Manufacturer
INA/FAG
