Maintenance & Wear Parts

INA FAG - TSHE35 - Housing Unit Tshe

INA FAG - TSHE35 - Housing Unit Tshe

INA FAG - TSHE35 - Housing Unit Tshe

INA FAG - TSHE35 - Housing Unit Tshe

INA FAG - TSHE35 - Housing Unit Tshe

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping

Pay Securely with

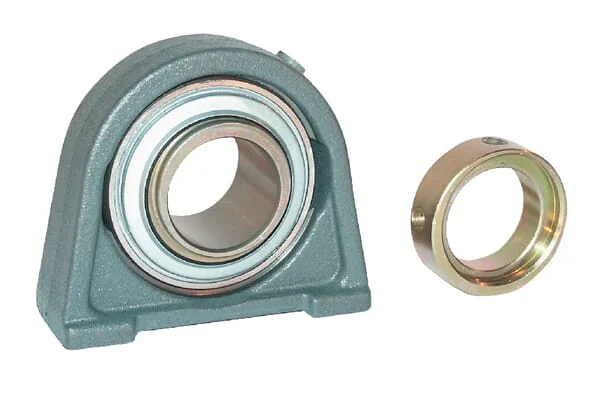

INA FAG - TSHE35 - Housing Unit Tshe

INA FAG - TSHE35 - Housing Unit Tshe

€66.76

(Excl. VAT)

Price

(Excl. VAT)

€66.76

Number of products

INA FAG

Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Product Details

Brand

Unit

Each

Weight

1,36 kg

Benefits

Very good protection against contamination Low space requirement

Properties

Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated

Consists of

• Bearing block Clamp ring

Housing type

Pillow block - short

HTotal height

93 mm

WTotal length

103 mm

BHousing width

45 mm

Flange thickness

9,5 mm

Bearing inside diameter

35 mm

Mounting holes distance

82,6 mm

AShaft vertical distance

47,6 mm

Mounting thread diameter

M10

LBearing inner ring width

51,3 mm

Grease nipple thread diameter

M6

Locking ring outside diameter

51 mm

OBearing balls distance to mounting surface

32,3 mm

Manufacturer

INA/FAG
