INA FAG - UCF203 - Bearing Housing with Bearing
INA FAG - UCF203 - Bearing Housing with Bearing

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

INA FAG - UCF203 - Bearing Housing with Bearing

INA FAG - UCF203 - Bearing Housing with Bearing

€18.35

(Excl. VAT)

Price

(Excl. VAT)

€18.35

Product Description

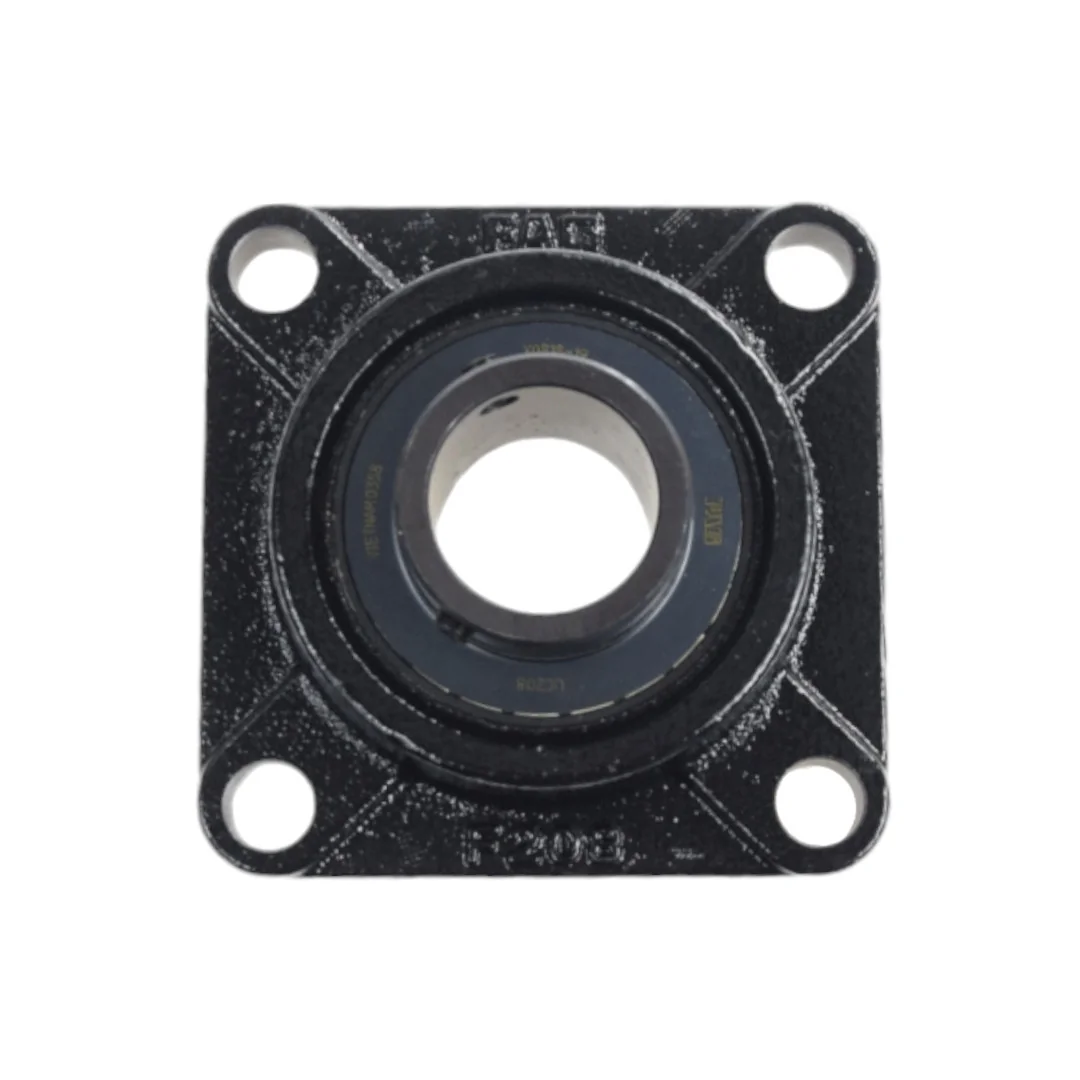

The INA UCF203 is a genuine square flanged bearing housing unit, manufactured from robust cast iron, and includes a radial insert ball bearing with grub screw fixing. Designed for reliable performance in various industrial applications, it features RSR seals for enhanced protection. Key dimensions include a 17 mm bore diameter, 86 mm housing width, and an overall height of 33.3 mm. This unit offers a dynamic load rating of 12.7 kN and operates efficiently within a temperature range of -20 °C to +120 °C.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Product Details

Brand
ina-fag
Part Numbers
ucf203
Equivalent AM Part Numbers

Skf

FYTM17TF

Ntn

UCF203D1

Snr

UCF203

Timken

UCF203
Bore Diameter (mm)
17
Housing Width (mm)
86
Distance Between Bolt Holes (mm)
64
Housing Length (mm)
86
Bolt Hole Diameter (mm)
12
Overall Height (mm)
33.3
Flange Thickness (mm)
10
Distance Bearing Center To Mounting Surface (mm)
64
Bearing Width (mm)
31
Distance Bearing Face To Grub Screw (mm)
19
Weight (kg)
0.6
Dynamic Load Rating (kN)
12.7
Static Load Rating (kN)
6.55
Fatigue Load Limit (kN)
0.275
Limiting Speed (rpm)
4300
Permissible Operating Temperature (°C)
-20 to +120
Quality
OEM Supplier
Manufacturer
ina-fag
