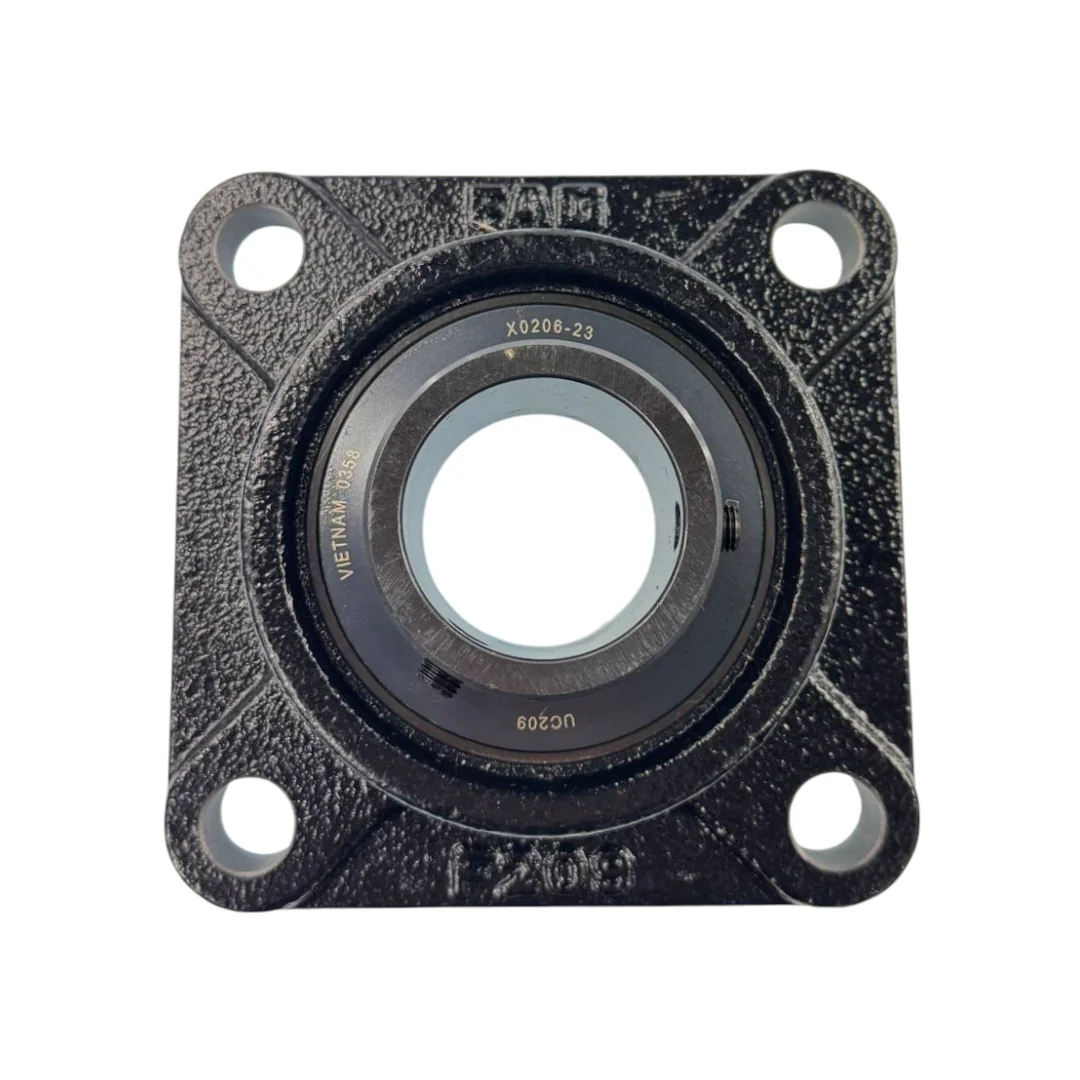

INA/FAG - UCF209 - Bearing With Square Housing

This square flanged bearing unit with a pressed steel housing supports a rotating shaft where the housing bolts directly to a flat machine frame. The bearing insert is a standard 209-series ball bearing, pre-lubricated and sealed, mounted inside a four-bolt square housing that provides rigid alignment in applications where a pillow block would not fit. The housing absorbs radial and moderate axial loads from the shaft and transfers them into the frame. A worn bearing produces increasing rotational noise and shaft play, which can lead to misalignment of the driven component. The manufacturer machines the housing bore to the same tolerance as the original assembly, so the bearing insert seats without additional shimming. On replacement, clean the mounting face and tighten the four bolts evenly to the frame manufacturer’s torque specification.
