INA FAG - UCF210 - Housing Unit Ucf

OEM Supplier

SKU: ina-fag-ucf210

INA FAG - UCF210 - Housing Unit Ucf

€24.09

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€24.09

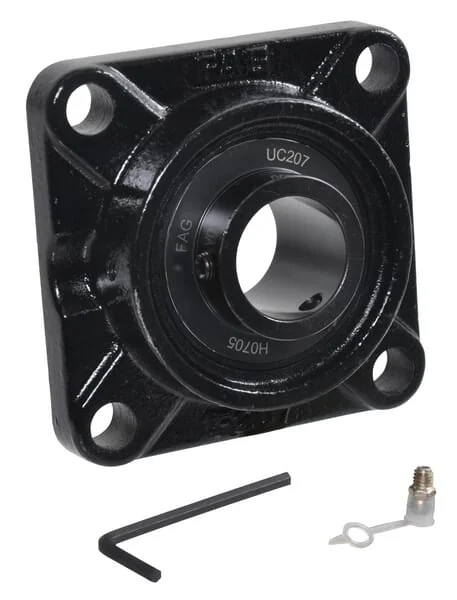

These square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
ucf210
Pros
Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated
Unit
Each
Includes
Bearing block Bearing Grease nipple
Properties
Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Housing type
Square flange
Total height
54,6 mm
aTotal length
143 mm
aHousing width
143 mm
lHousing height
40 mm
Mounting holes diameter
16 mm
Basic radial load static
23200 N
dBearing inside diameter
50 mm
eMounting holes distance
111 mm
Basic radial load dynamic
35000 N
BiBearing inner ring width
51,6 mm
Grease nipple thread diameter
M6
Bearing balls distance to locking side end
22 mm
EAN
4047643247580
Manufacturer
INA/FAG
