INA FAG - UCF207 - Housing Unit Ucf

OEM Supplier

SKU: ina-fag-ucf207

INA FAG - UCF207 - Housing Unit Ucf

€25.81

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€25.81

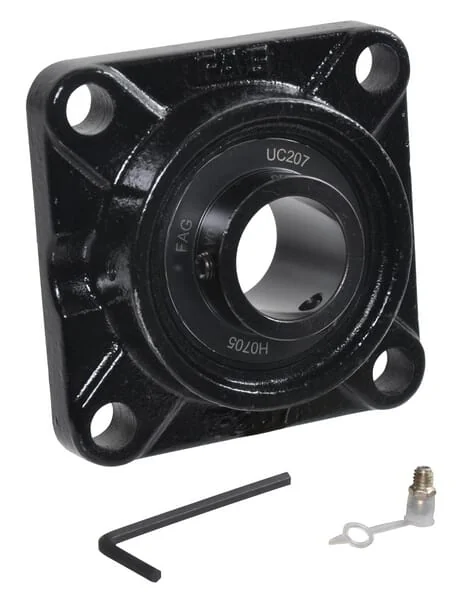

These square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
ucf207
OEM Part Numbers

Skf

Ntn

Snr

Koyo

Timken

Pros
Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated
Unit
Each
Includes
Bearing block Bearing Grease nipple
Properties
Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated

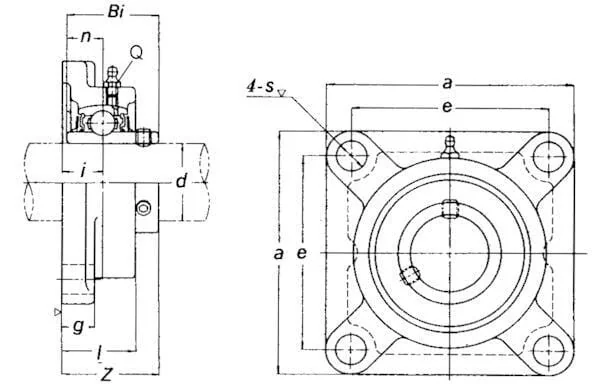

Housing type
Square flange
Total height
44,4 mm
aTotal length
117 mm
aHousing width
117 mm
lHousing height
34 mm
Mounting holes diameter
14 mm
Basic radial load static
15300 N
dBearing inside diameter
35 mm
eMounting holes distance
92 mm
Basic radial load dynamic
25500 N
BiBearing inner ring width
42,9 mm
Grease nipple thread diameter
M6
Bearing balls distance to locking side end
19 mm
lBearing balls distance to mounting surface
17,5 mm
EAN
4047643247665
Manufacturer
INA/FAG
