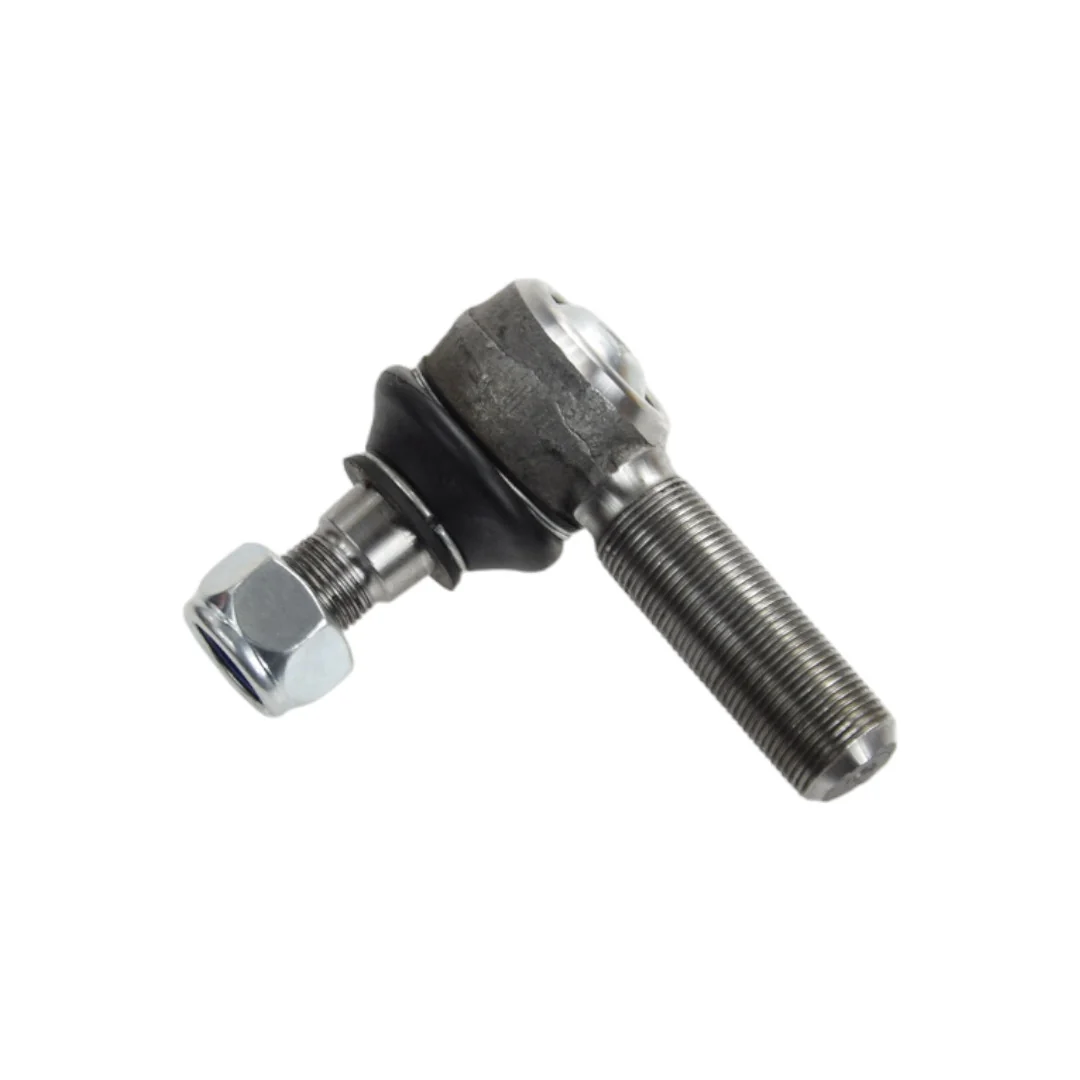

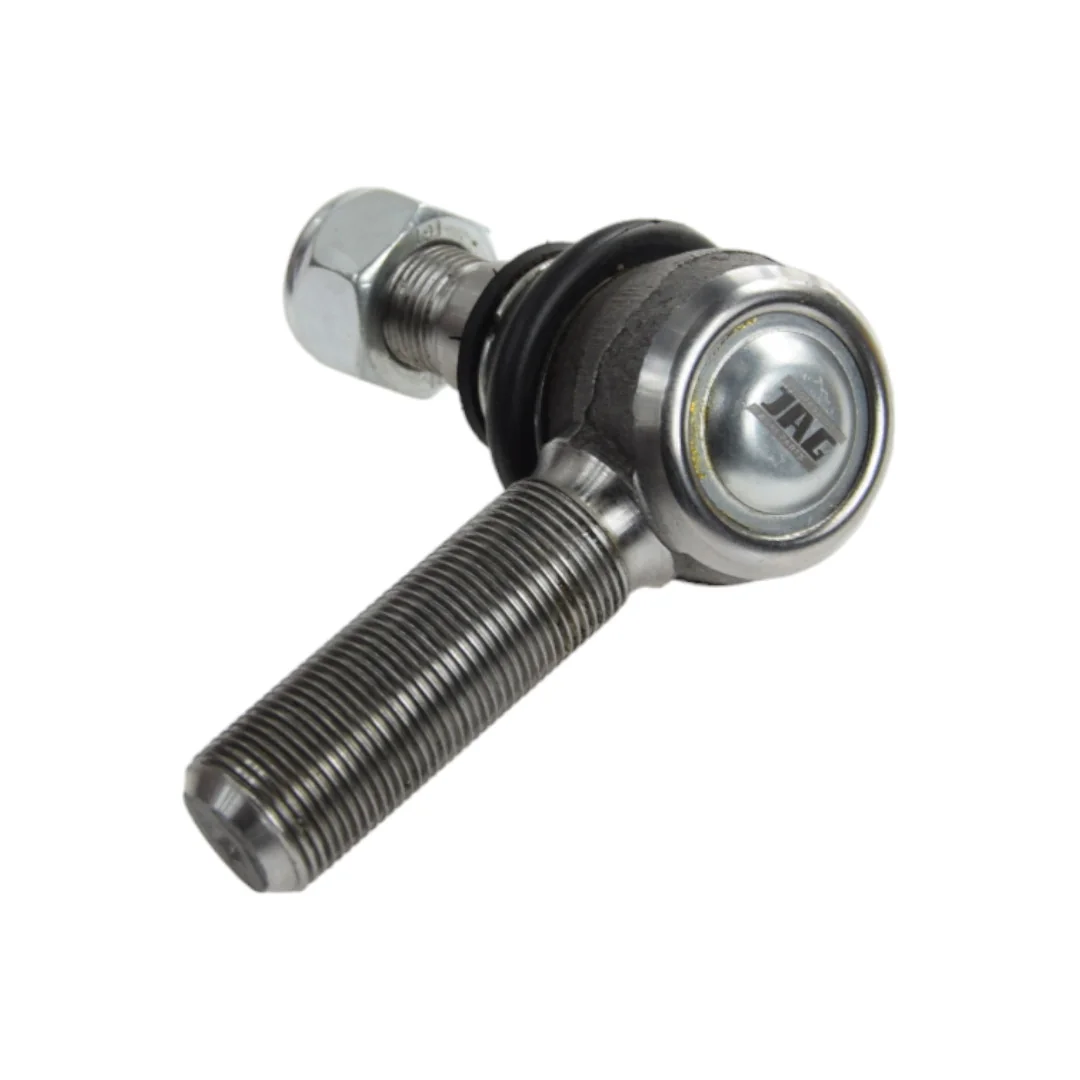

JAG - 08-0002 - Ball Joint Claas
JAG - 08-0002 - Ball Joint Claas
JAG - 08-0002 - Ball Joint Claas
JAG - 08-0002 - Ball Joint Claas
JAG - 08-0002 - Ball Joint Claas
JAG - 08-0002 - Ball Joint Claas
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

JAG - 08-0002 - Ball Joint Claas

JAG - 08-0002 - Ball Joint Claas

€11.79

(Excl. VAT)

Price

(Excl. VAT)

€11.79

Product Description

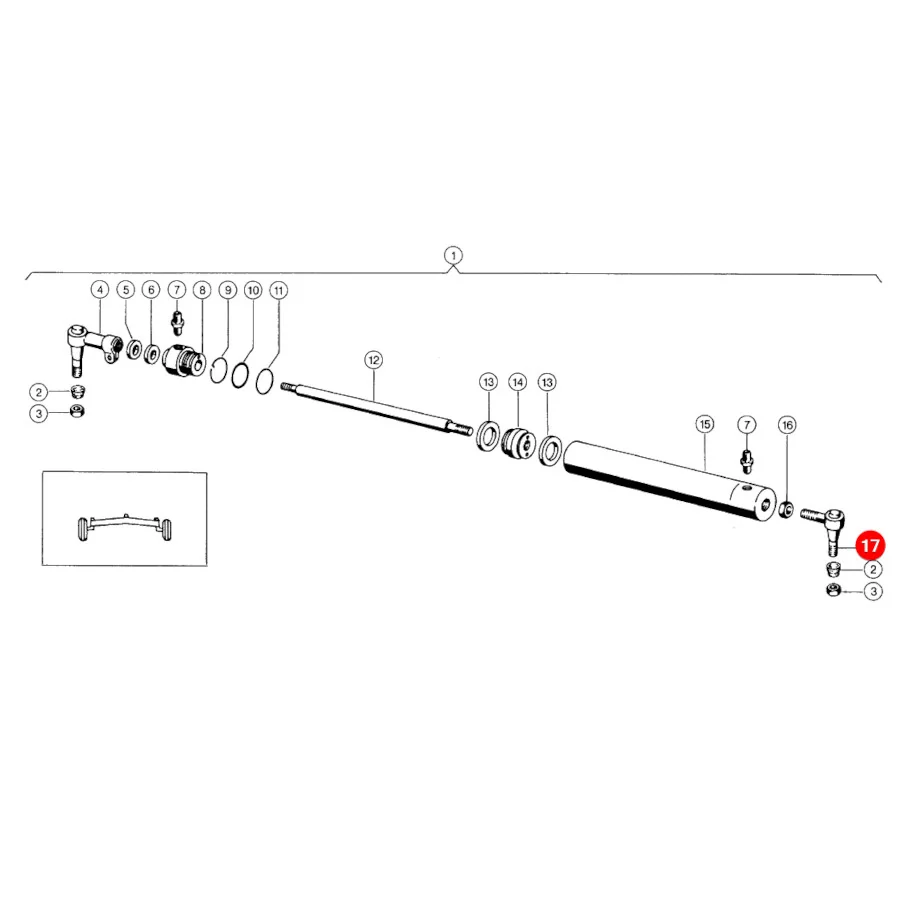

This ball joint connects a hydraulic cylinder rod to its mounting bracket within the grain harvester's hydraulic system. It allows the cylinder to pivot as it extends and retracts, accommodating angular misalignment between the rod and the fixed attachment point. Wear in the ball joint socket introduces free play, which causes the cylinder to knock during directional changes and can lead to seal damage from side loading. The joint is machined to the same spherical tolerance as the original assembly, so no shimming is required during replacement. On installation, tighten the lock nut to the specified torque and confirm free movement through the full arc of the joint.
Jag
Jag is a brand that has established itself in the agricultural and industrial sectors, primarily known for its range of components and spare parts. While specific founding details like year or founder are not widely publicized, the company has built a reputation for providing reliable parts essential for the maintenance and operation of various machinery. Its focus is on delivering functional and durable solutions for demanding environments. The brand's product offerings typically include a wide array of replacement parts crucial for the upkeep of agricultural equipment. These often encompass items such as filters, bearings, and seals, which are vital for the smooth functioning of tractors, harvesters, and other farm machinery. Jag components are designed to meet the operational requirements of heavy-duty applications, ensuring longevity and performance. At Partao, we provide a comprehensive selection of Jag spare parts. Our top categories for this brand include Air Filters, Axle Seals, Bale Handling Equipment, Ball Bearings, and Bearing Housings. Over 560 genuine Jag spare parts are available at Partao. Equipment owners and maintenance professionals frequently select Jag parts for their repair and service needs. The brand's commitment to producing dependable components helps ensure that agricultural operations can continue with minimal interruption, offering a practical choice for maintaining machinery across diverse farming applications.

Product Details

Brand
JAG
Equivalent OEM Part Numbers

Claas

00017704100006855762177041.0685576.2
Length
100 mm
Location
Hydraulic system
Thread Size
M22
Thread Pitch
1,5
Manufacturer
JAG

Similar items you might like

  • Jag

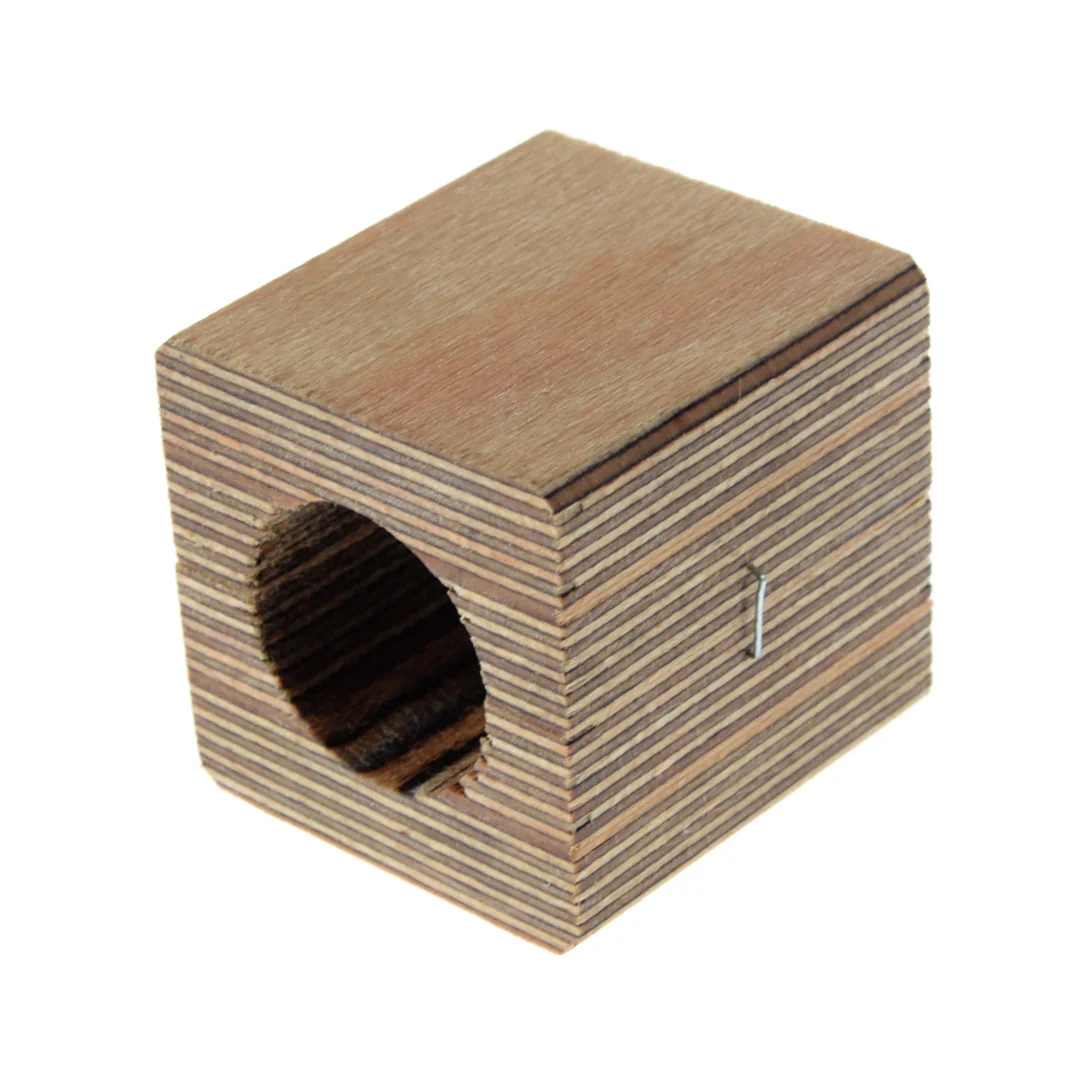

    JAG - 687106.00 - Wooden Scraper Bearing Claas
