Home
Attachments & Lift
Harvesting Parts
Threshing Parts

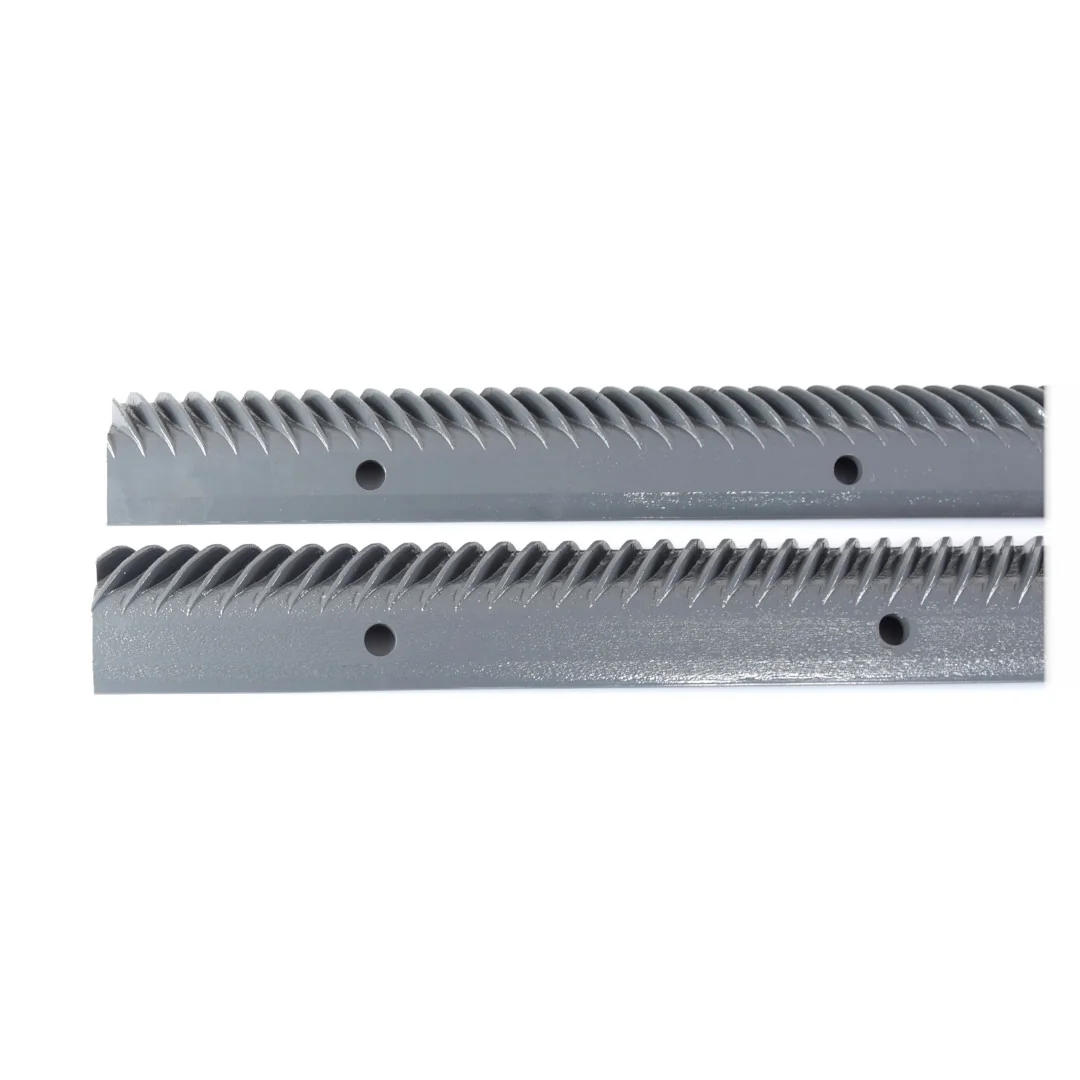

JAG - 177533-G - Pair Of Threshing Drum Beaters Claas
JAG - 177533-G - Pair Of Threshing Drum Beaters Claas
JAG - 177533-G - Pair Of Threshing Drum Beaters Claas
JAG - 177533-G - Pair Of Threshing Drum Beaters Claas
JAG - 177533-G - Pair Of Threshing Drum Beaters Claas
JAG - 177533-G - Pair Of Threshing Drum Beaters Claas

In stock - ready to ship

Order now for delivery between 14 July and 17 July
Free shipping on orders over €60

Pay Securely with

JAG - 177533-G - Pair Of Threshing Drum Beaters Claas

JAG - 177533-G - Pair Of Threshing Drum Beaters Claas

€56.99

(Excl. VAT)

Price

(Excl. VAT)

€56.99

Product Description

This flail is the impact element that strips grain from the straw as it passes through the threshing drum. It mounts on a bolt and nut assembly to the drum rotor; the flail’s curved face contacts the crop mat at high speed, separating the kernels from the straw. Flails are sold and installed in pairs, with the two pieces in each pair matched as closely as possible in weight. Each pair must be mounted on opposite sides of the drum to maintain rotational balance. After all flails are installed, the threshing drum must be balanced. When reconditioning the drum, replace the entire set of flails at once; mixing new and worn flails creates uneven mass distribution that leads to shaft runout. A worn or missing flail reduces threshing efficiency and accelerates wear on the drum bearings and counter-rotating components.
Jag
Jag is a brand that has established itself in the agricultural and industrial sectors, primarily known for its range of components and spare parts. While specific founding details like year or founder are not widely publicized, the company has built a reputation for providing reliable parts essential for the maintenance and operation of various machinery. Its focus is on delivering functional and durable solutions for demanding environments. The brand's product offerings typically include a wide array of replacement parts crucial for the upkeep of agricultural equipment. These often encompass items such as filters, bearings, and seals, which are vital for the smooth functioning of tractors, harvesters, and other farm machinery. Jag components are designed to meet the operational requirements of heavy-duty applications, ensuring longevity and performance. At Partao, we provide a comprehensive selection of Jag spare parts. Our top categories for this brand include Air Filters, Axle Seals, Bale Handling Equipment, Ball Bearings, and Bearing Housings. Over 560 genuine Jag spare parts are available at Partao. Equipment owners and maintenance professionals frequently select Jag parts for their repair and service needs. The brand's commitment to producing dependable components helps ensure that agricultural operations can continue with minimal interruption, offering a practical choice for maintaining machinery across diverse farming applications.

Product Details

Brand
JAG
Equivalent OEM Part Numbers

Claas

0001775330177533.0
Width
72 mm
Length
1565 mm
Location
Threshing unit
Application
Harvesting machines
Product Type
Flail
Hole Diameter
12 mm
Number Of Holes
7
Manufacturer
JAG
