Home
Maintenance & Wear Parts
Bearings
Other Bearings
JAG - 600048.00 - Claas Wooden Bearing Bush
JAG - 600048.00 - Claas Wooden Bearing Bush
JAG - 600048.00 - Claas Wooden Bearing Bush
JAG - 600048.00 - Claas Wooden Bearing Bush
JAG - 600048.00 - Claas Wooden Bearing Bush
JAG - 600048.00 - Claas Wooden Bearing Bush

In stock - ready to ship

Order now for delivery between 21 May and 25 May
Free shipping on orders over €60

Pay Securely with

JAG - 600048.00 - Claas Wooden Bearing Bush

JAG - 600048.00 - Claas Wooden Bearing Bush

€5.74

(Excl. VAT)

Price

(Excl. VAT)

€5.74

Product Description

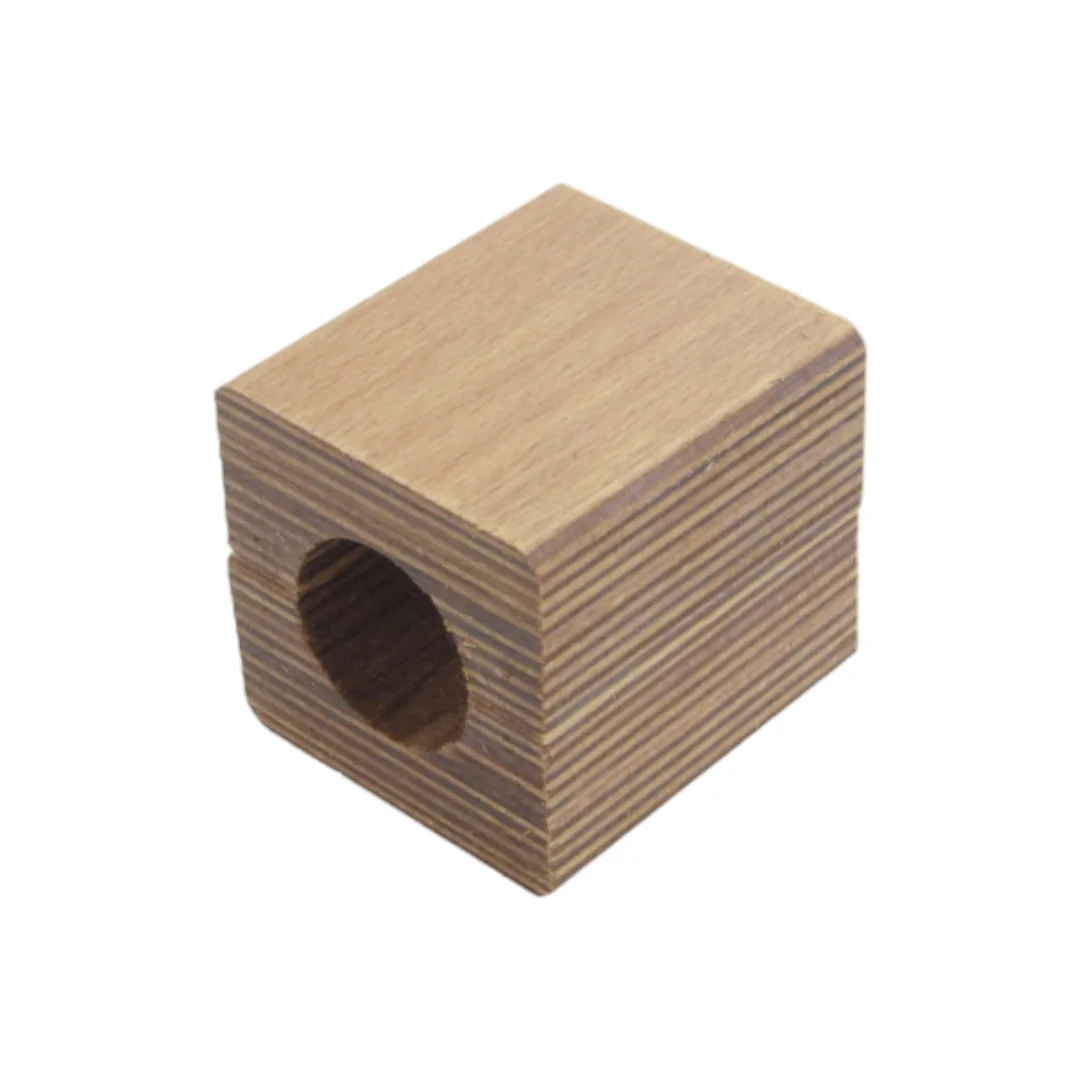

This wooden bearing block is a wear component for the straw-walker assembly in a combine harvester. It supports the oscillating motion of the walker shaft, allowing the straw mat to be conveyed rearward while grain falls through the walker grates. The wood material acts as a sacrificial surface, gradually wearing to protect the steel shaft from scoring. When the bearing clearance increases due to wear, the walker motion becomes noisy and the shaft may develop play, reducing separation efficiency. This part is machined to the original profile so it seats correctly in the walker frame without modification. On replacement, ensure the shaft surface is clean and free of burrs to avoid accelerated wear of the new bearing.
Jag

Product Details

Brand
JAG
Fits

Claas

Avero 160Avero 240Dominator 130Dominator 140Dominator 150Dominator 38Dominator 48Dominator 58Dominator 68Dominator 76Dominator 78Dominator 86Dominator 88Dominator 96Dominator 98Mega 203Mega 204Mega 350Tucano 320Tucano 330Tucano 340Tucano 420Tucano 430
Width
60 mm
Height
61 mm
Length
65 mm
Location
Straw walkers
Application
Harvesting machines
Inner Diameter
32 mm
Manufacturer
JAG
