JAG - 616128.01 - Metal-Rubber Bushing For Header Claas
JAG - 616128.01 - Metal-Rubber Bushing For Header Claas
JAG - 616128.01 - Metal-Rubber Bushing For Header Claas
JAG - 616128.01 - Metal-Rubber Bushing For Header Claas
JAG - 616128.01 - Metal-Rubber Bushing For Header Claas
JAG - 616128.01 - Metal-Rubber Bushing For Header Claas
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

JAG - 616128.01 - Metal-Rubber Bushing For Header Claas

JAG - 616128.01 - Metal-Rubber Bushing For Header Claas

€8.55

(Excl. VAT)

Price

(Excl. VAT)

€8.55

Product Description

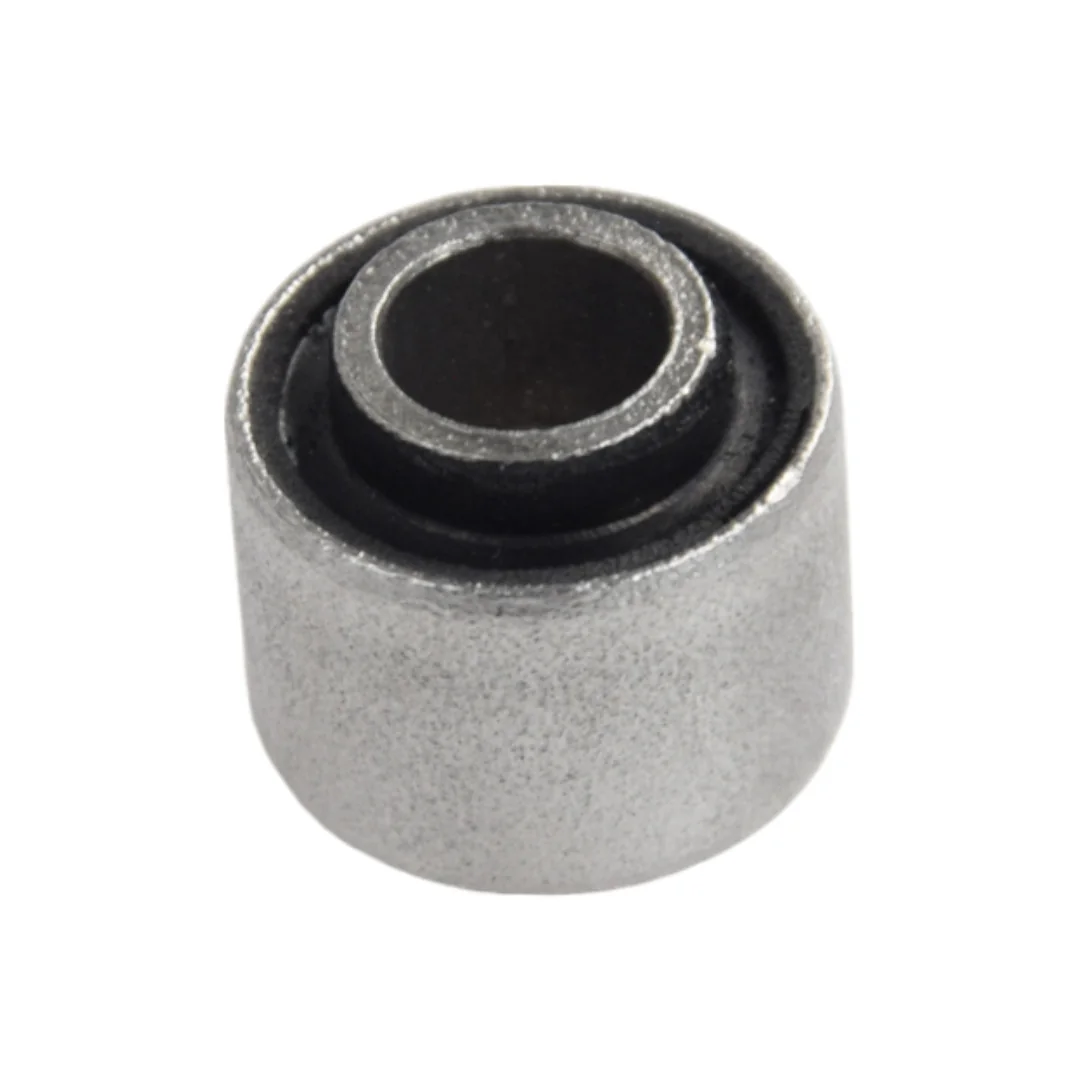

This metal-rubber bushing isolates the header drive shaft from the frame, reducing vibration and compensating for minor misalignment between the rotating and stationary members. It is pressed into the pivot or mounting eye of the header assembly, where the rubber layer absorbs shock loads during operation. A worn bushing allows excessive play, which leads to accelerated wear on the pin and the surrounding bore. The metal outer shell and inner sleeve are bonded to the rubber core; separation of the bond or cracking of the rubber indicates replacement is needed. On installation, ensure the bushing is fully seated in the bore and that the mating pin rotates freely within the inner sleeve.
Jag

Product Details

Brand
JAG
Fits

Claas

C300-C900 Dominator/Lexion/Medion/Mega/TucanoC450-C750 Dominastor/LexionV1050-V1350 Lexion/TucanoV540-1050 Vario Lexion/TucanoV540-900 Vario Lexion
Height
17 mm
Location
Header
Application
Harvesting machines
Product Type
Bushing
Inner Diameter
12 mm
Outer Diameter
26 mm
Manufacturer
JAG
