JAG - 618254.00 - Claas Wooden Shaker Bearing Shell
JAG - 618254.00 - Claas Wooden Shaker Bearing Shell
JAG - 618254.00 - Claas Wooden Shaker Bearing Shell
JAG - 618254.00 - Claas Wooden Shaker Bearing Shell
JAG - 618254.00 - Claas Wooden Shaker Bearing Shell
JAG - 618254.00 - Claas Wooden Shaker Bearing Shell
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

JAG - 618254.00 - Claas Wooden Shaker Bearing Shell

JAG - 618254.00 - Claas Wooden Shaker Bearing Shell

€12.63

(Excl. VAT)

Price

(Excl. VAT)

€12.63

Product Description

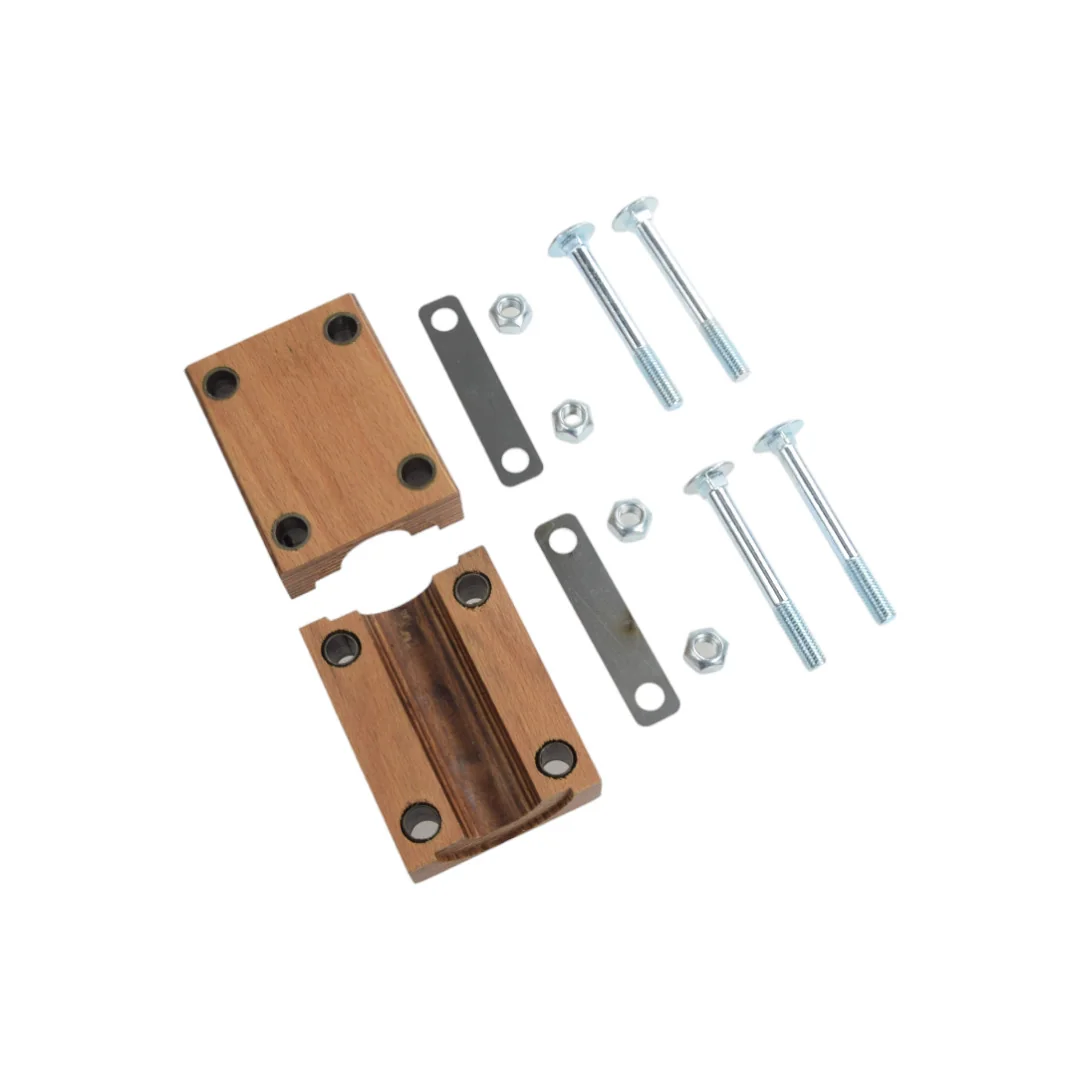

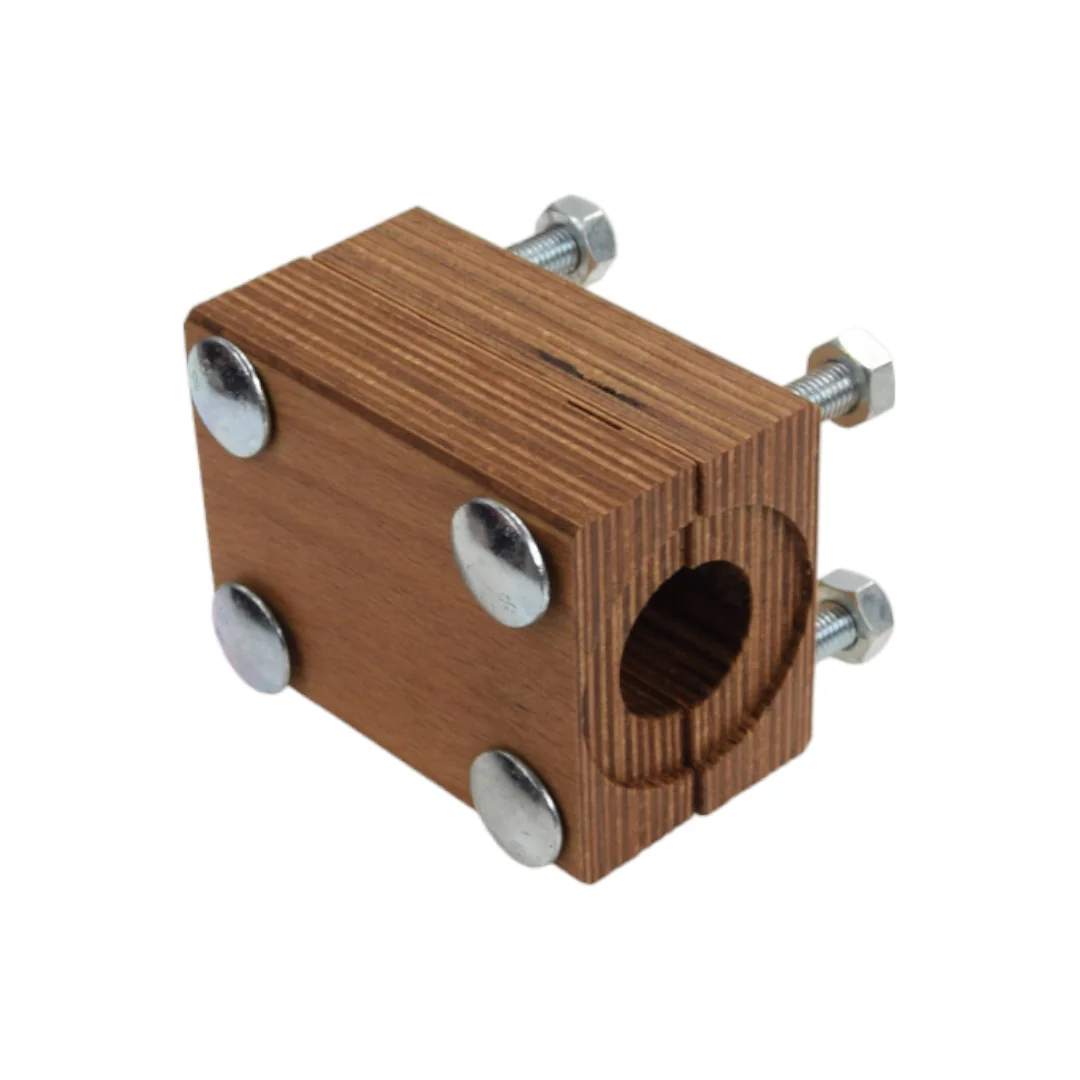

This wooden bearing shell is a wear component for the walker assembly in a grain harvester. It supports the oscillating shaft that drives the straw walkers, allowing the shaft to rotate while absorbing the cyclic loads from the walker motion. The set includes two plates, two bearing shell halves, four self-locking nuts, and four screws for a complete replacement. Over time, the wooden bearing surface wears, increasing clearance and causing excessive vibration in the walker assembly. Replacing the shell restores the correct shaft alignment and reduces noise. On installation, ensure the bearing halves are seated fully in the housing and torque the retaining screws to the specified value.
Jag

Product Details

Brand
JAG
Fits

Claas

Dominator 130Dominator 140Dominator 150Dominator 38Dominator 48Dominator 58Dominator 68Dominator 76Dominator 78Dominator 86Dominator 88Dominator 88 VXDominator 96Dominator 98Dominator 98 VXMedion 310Medion 320Medion 330Mega 202Mega 202 IIMega 203Mega 203 IIMega 204Mega 204 II
Width
80 mm
Height
61 mm
Length
106 mm
Location
Walkers
Application
Harvesting machines
Product Type
Bearing shell
Set Includes
2x plate, 2x bearing shell half, 4x self-locking nut, 4x screw
Inner Diameter
31 mm
Number Of Holes
4
Manufacturer
JAG
