JORC - 3402 - Jorc kaptiv-md g1/2 4.5 230vac 16bar

Name: JORC - 3402 - Jorc kaptiv-md g1/2 4.5 230vac 16bar
Brand: JORC
SKU: jorc-3402
Price: 292.46 EUR
Availability: InStock

SKU: jorc-3402

€292.46€249.97 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 1 to 2 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€292.46

Brand

JORC

Note

Level-controlled condensate drain

Alarm

visual, LED indicators

Valve seal

FPM

Valve type

2/2 way, directly controlled

Weight [kg]

0.635

Test function

yes

Supply voltage

230 VAC

System pressure

0 to 16 bar

Inlet connection

1/2" (BSP or NPT)

Protection class

IP65 (NEMA4)

Inlet height [mm]

Outlet connection

1/4" BSP, with hose nipple adapter made of brass

serviceable valve

yes

Housing - material

Corrosion-resistant aluminum, EP coating

Medium temperature

+1°C to +50°C

Side inlet adapter

yes, optional

Valve opening [mm]

Ambient temperature

+1°C to +50°C

max. compressor capacity

10 m³/min. (350 CFM)

Plug type (power and alarm)

DIN 43650-B

max. capacity A3/A4 version

45 liters of condensate per hour at 16 bar

Integrated stainless steel screen

yes

Manufacturer

JORC

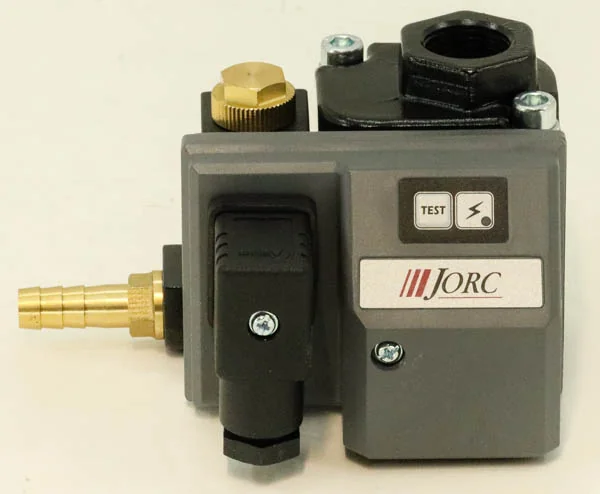

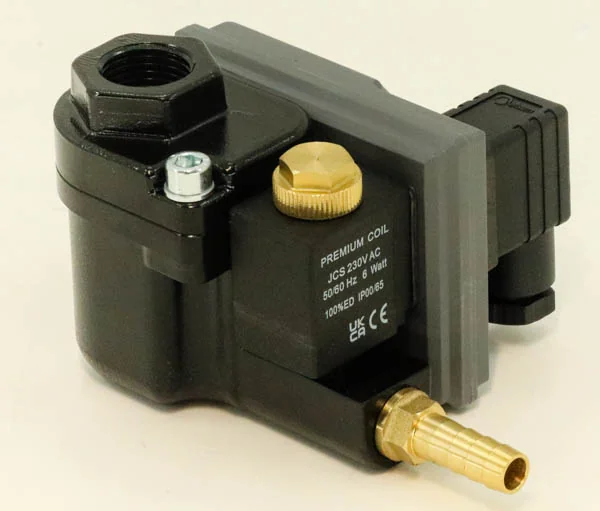

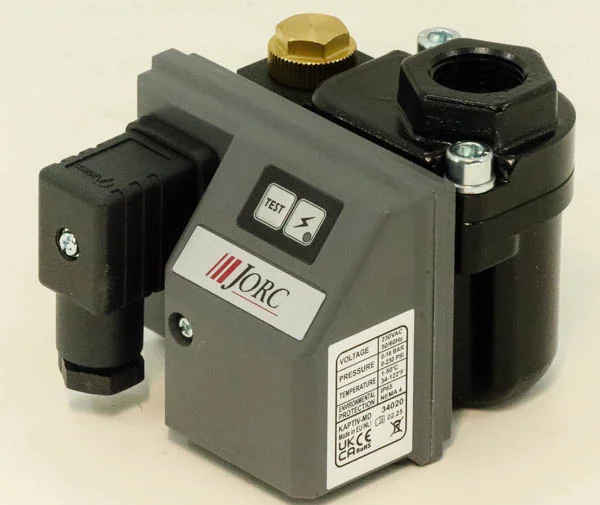

The JORC 3402 is an electrically operated level-controlled condensate drain with a 2/2-way solenoid valve design. It operates at 230 VAC and handles system pressures up to 16 bar. The unit features an IP65-rated aluminum housing, FPM seals, and integrated stainless steel filter. It includes visual alarm indicators and a test function for monitoring performance.

JORC is a manufacturer specializing in condensate management solutions for compressed air systems. The company was founded in 1991 and is headquartered in Heerlen, Netherlands. JORC has established itself as a reliable provider of innovative and energy-efficient products designed to remove condensate from compressed air, which is crucial for maintaining the efficiency and longevity of pneumatic equipment. The brand's product range primarily focuses on various types of condensate drains, oil/water separators, and related accessories. JORC is known for its timer-controlled drains, level-sensed drains, and zero-loss drains, which are engineered to minimize air loss and reduce energy consumption. These solutions are vital in industrial settings where compressed air is used extensively, including in workshops and facilities that maintain agricultural machinery. At Partao, you can find genuine JORC spare parts and components that support the maintenance of compressed air systems. Our catalog includes Diagnostic Tools, Hoses & Fittings, Oil Filters, Other Electrical Components, and Other Filters. JORC products are valued in various industrial applications for their robust construction and effectiveness in ensuring clean and dry compressed air. For agricultural workshops and service centers, reliable condensate management is essential to protect pneumatic tools and systems used in machinery repair and maintenance, contributing to operational efficiency and equipment lifespan. Shop more than 254 genuine JORC spare parts.
