Kramp-09200032711 - Insert A, Female 3P Screw
Kramp-09200032711 - Insert A, Female 3P Screw

In stock - ready to ship

Order now for delivery between 23 May and 27 May
Free shipping on orders over €60

Pay Securely with

Kramp-09200032711 - Insert A, Female 3P Screw

Kramp-09200032711 - Insert A, Female 3P Screw

€26.43

(Excl. VAT)

Price

(Excl. VAT)

€26.43

Product Description

The Harting 09200032711 is a genuine Han A series female connector insert featuring 3 contacts and reliable screw termination. Engineered for demanding industrial environments, this insert has a rated current of 16 A and a rated voltage of 250 V. It is constructed from durable polycarbonate for the insert body and utilizes silver-plated copper alloy contacts to ensure optimal electrical conductivity. This connector insert accommodates wire gauges from 0.75 to 2.5 mm² (AWG 18-14) and maintains performance across a wide operating temperature range of -40°C to 125°C.
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

Product Details

Brand
Harting
Series
Han A
Number Of Contacts
3
Gender
Female
Termination Method
Screw termination
Rated Current (A)
16
Rated Voltage (V)
250
Rated Impulse Voltage Kv
4
Pollution (°)
3
Category Of Overvoltage
III
Rated Voltage According To Ul Csa (V)
600
Insulation Resistance (Ω)
10000000000
Contact Resistance (Ω)
0.001
Material Contact
Copper alloy
Surface Contact
Silver plated
Material Insert
Polycarbonate (PC)
Flammability Rating Ul 94
V-0
RoHS Conformant
Yes
Reach Conformant
Yes
Operating Temperature Min (°C)
-40
Operating Temperature Max (°C)
125
Mating Cycles
500
Wire Gauge Mm2 (min)
0.75
Wire Gauge Mm2 Max
2.5
Wire Gauge Awg (min)
18
Wire Gauge Awg Max
14
Stripping Length (mm)
7.5
Screw Head
Slotted
Locking Type
Screw
Length (mm)
34.5
Width (mm)
34
Height (mm)
14
Weight (kg)
0.012
Quality
OEM Quality
Manufacturer
Harting

Similar items you might like

  • Kramp

    Kramp - 09196 - Outer Bearing Ring (Corresponds to JD7257)

    Kramp

    €38.23

  • Kramp

    Kramp - 09200102612 - Insert A, Male 10P Screw

    Kramp

    €22.18

  • Kramp

    Kramp - 09200162612 - Pin Insert A 16P 1-16 Screw Connector

    Kramp

    €31.45

  • Kramp

    Kramp - 09200042611 - Insert A, Male 4P Screw

    Kramp

    €27.23

  • Kramp

    Kramp - 09200162812 - Inserts, Screw Termination, Female, Polycarbonate (PC), RAL 7032

    Kramp

    €38.66

  • Kramp

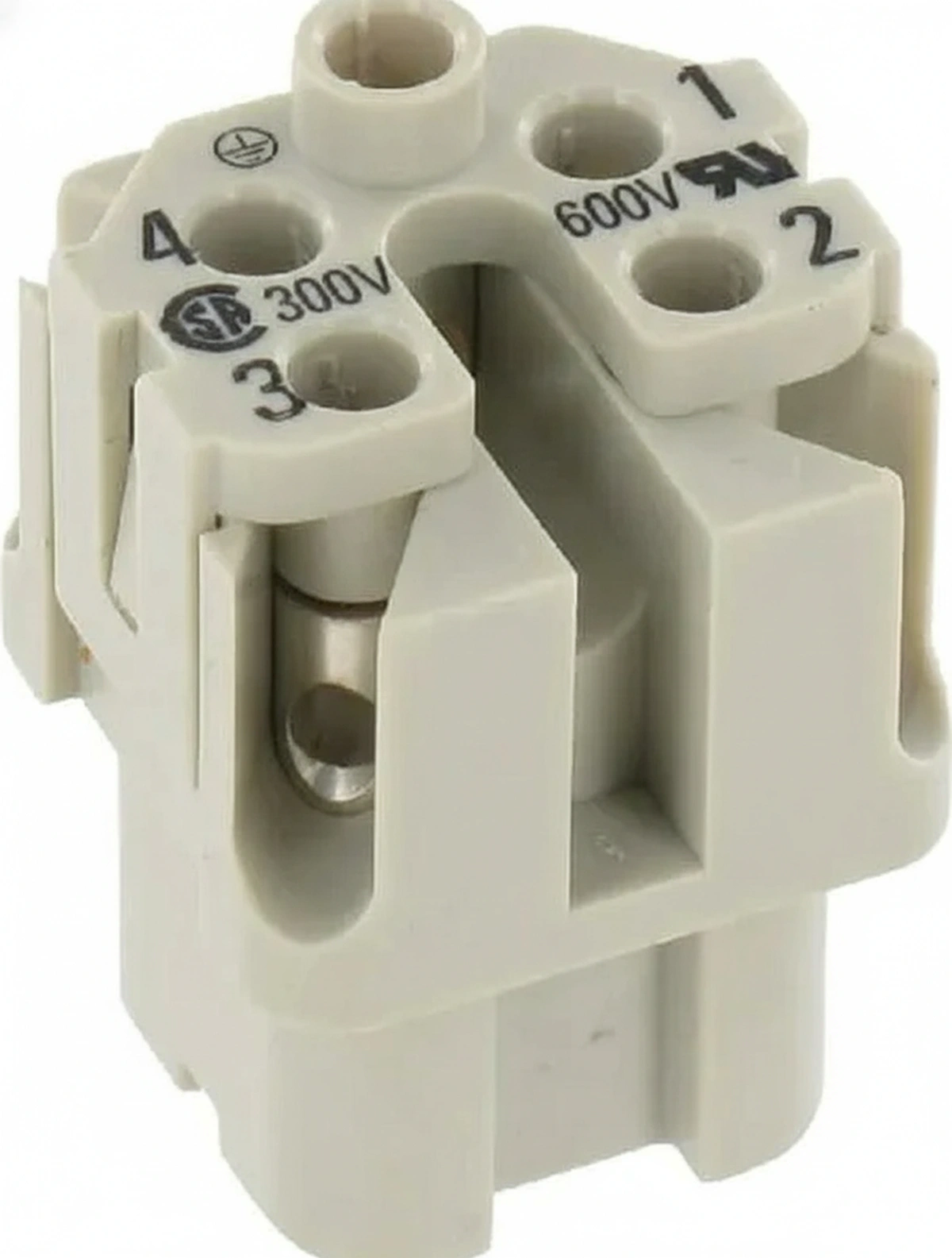

    Kramp - 09200042711 - Insert A, Female 4P Screw

    Kramp

    €20.31

  • Kramp

    Kramp - 0921715320013 - Dropleg Terminal Block

    Kramp

    €38.09

  • Kramp

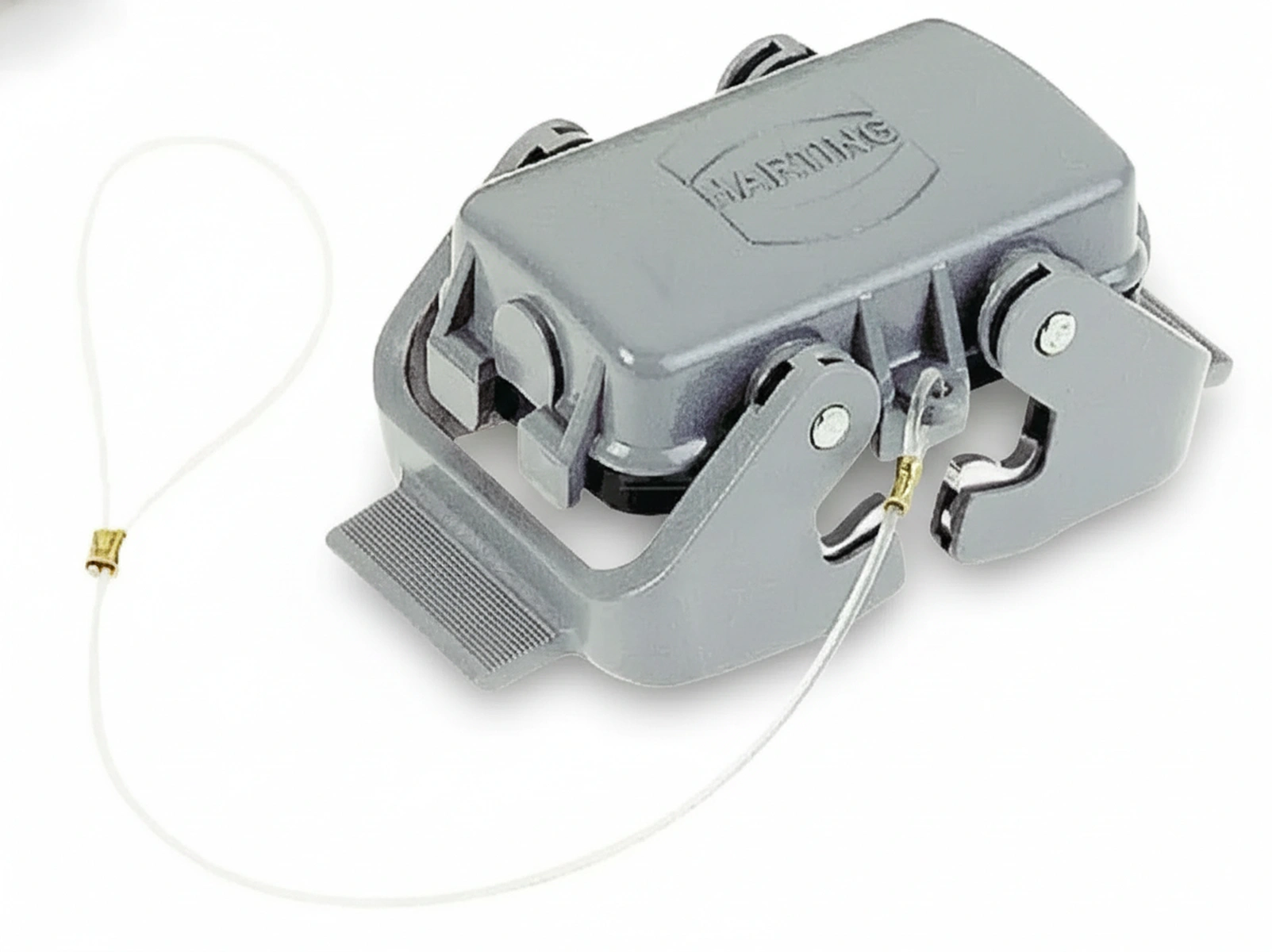

    Kramp - 09300105423 - Cover 10B with Double Lever, Metal
