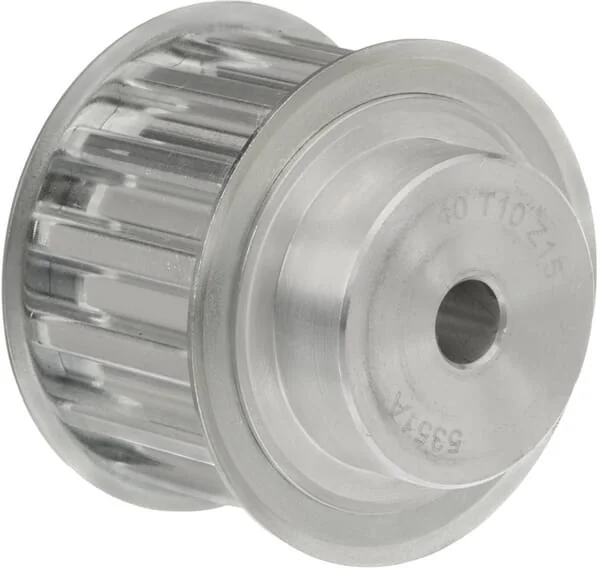

Kramp - 40T10152 - Timing Pulley Type -T10 15Z
Kramp - 40T10152 - Timing Pulley Type -T10 15Z
Kramp - 40T10152 - Timing Pulley Type -T10 15Z
Kramp - 40T10152 - Timing Pulley Type -T10 15Z
Kramp - 40T10152 - Timing Pulley Type -T10 15Z
Kramp - 40T10152 - Timing Pulley Type -T10 15Z

In stock - ready to ship

Order now for delivery between 23 March and 26 March
Free shipping on orders over €60

Pay Securely with

Kramp - 40T10152 - Timing Pulley Type -T10 15Z

Kramp - 40T10152 - Timing Pulley Type -T10 15Z

€7.14

(Excl. VAT)

Price

(Excl. VAT)

€7.14

Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 85,406 genuine Kramp spare parts.

Product Details

Brand
Kramp
Unit
Each
Weight
0,152 kg
Material
Aluminium
BHub width
40 mm
Belt width
25 mm

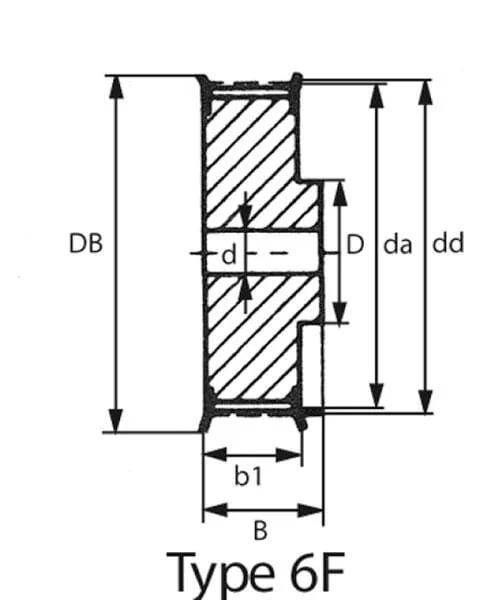

Pulley type
6F
Teeth pitch
10 mm
Hub diameter
32 mm
Technical info
Hub bore, keyway and tapped hole are optional Recommended maximum bore: D x 0.6
dBore diameter
8 mm
Number of teeth
15
b1Working width
30 mm
daPitch diameter
45,9 mm
ddTeeth diameter
47,9 mm
Max. bore diameter
18 mm
Designed for belt type
Timing belt
DBPulley outside diameter
51 mm
Designed for V-belt profile
T10
Manufacturer
Kramp

Similar items you might like

  • Kramp

    Kramp - 40T10182 - Timing Pulley Type -T10 18Z

Kramp

€8.92

  • Kramp

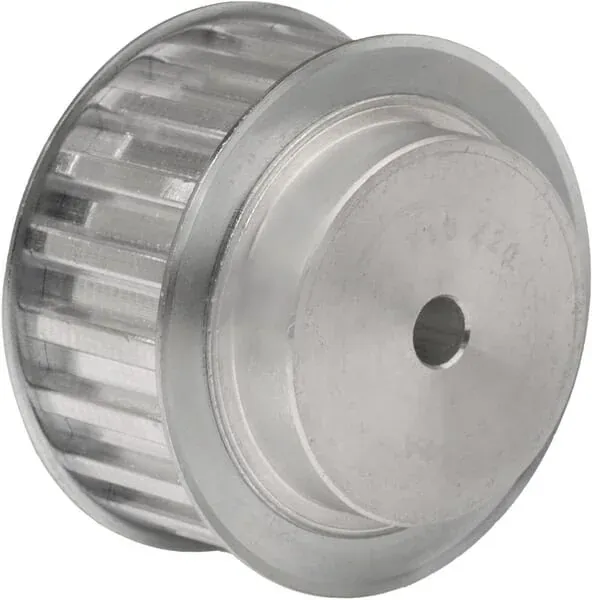

    Kramp - 40T10202 - Timing Pulley Type -T10 20Z

    Kramp

    €10.16

  • Kramp

    Kramp - 40T10242 - Timing Pulley Type -T10 24Z

    Kramp

    €13.42

  • Kramp

    Kramp - 40T10252 - Timing Pulley Type -T10 25Z

    Kramp

    €14.13

  • Kramp

    Kramp - 40T10272 - Timing Pulley Type -T10 27Z

    Kramp

    €16.14

  • Kramp

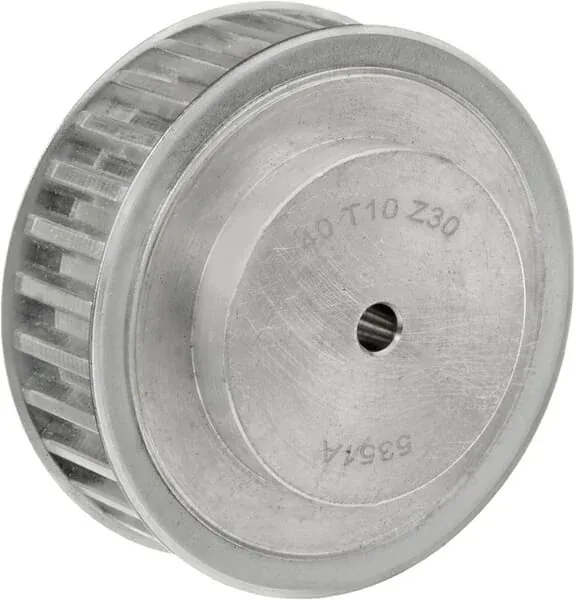

    Kramp - 40T10302 - Timing Pulley Type -T10 30Z
