Attachments & Lift

Hydraulic Systems

Hydraulic Cylinders

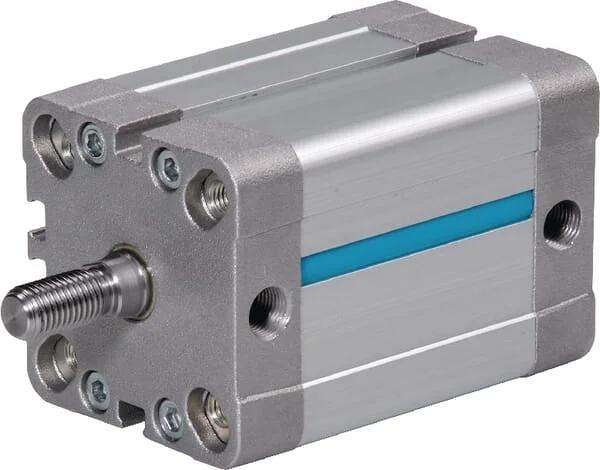

Kramp - CCND1615MO - Compact Cylinder

Kramp - CCND1615MO - Compact Cylinder

Kramp - CCND1615MO - Compact Cylinder

Kramp - CCND1615MO - Compact Cylinder

Kramp - CCND1615MO - Compact Cylinder

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping on orders over €60

Pay Securely with

Kramp - CCND1615MO - Compact Cylinder

Kramp - CCND1615MO - Compact Cylinder

€41.58

(Excl. VAT)

Price

(Excl. VAT)

€41.58

Number of products

Kramp

Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

Product Details

Brand

Type

Double acting

Unit

Each

NWidth

29,2 mm

Stroke

15 mm

Min. length

53,5 mm

Damping type

Flexible - both sides

ISO standard

21287 228/1

Rod material

Stainless steel AISI 304

BRod diameter

8 mm

Bore diameter

16 mm

Piston diameter

16 mm

Sealing material

Polyurethane

Cylinder material

Aluminium

Max. working pressure

10 BAR

Min. working pressure

1 BAR

Rod surface treatment

Anodised

Cylinder head material

Die-cast alloy

DMounting length - rod connection

12 mm

Mounting type - cylinder connection

Thread

Cylinder length without rod and head

37 mm

Mounting thread type - rod connection

Metric

G,IHousing front mounting holes length

12,8 mm3,5 mm

MHousing front mounting holes diameter

6 mm

OCylinder head mounting holes distance

18 mm

Housing side mounting holes thread type

Metric

AMounting thread diameter - rod connection

M6

Housing side mounting holes thread diameter

M5

EHousing front mounting holes thread diameter

M4

Mounting diameter (width) - cylinder connection

4 mm

Theoretical force at 6 bar pressure - advancing

121 N

Theoretical force at 6 bar pressure - retracting

91 N

Mounting thread type - male/female - rod connection

Male

CMounting thread to cylinder head distance - rod connection

4,5 mm

Manufacturer

Kramp

Similar items you might like

Kramp - CCND1630MO - Compact Cylinder
Kramp
€39.30
Kramp - CCND2025MO - Compact Cylinder
Kramp
€40.86
Kramp - CCND2030MI - Compact Cylinder
Kramp
€41.09
Kramp - CCND2550MI - Compact Cylinder
Kramp
€50.47
Kramp - CCND2560MO - Compact Cylinder
Kramp
€51.74
Kramp - CCND3225MI - Compact Cylinder
Kramp
€52.51
Kramp - CCND3230MO - Compact Cylinder
Kramp
€54.07
Kramp - CCND3240MO - Compact Cylinder
Kramp
€56.40

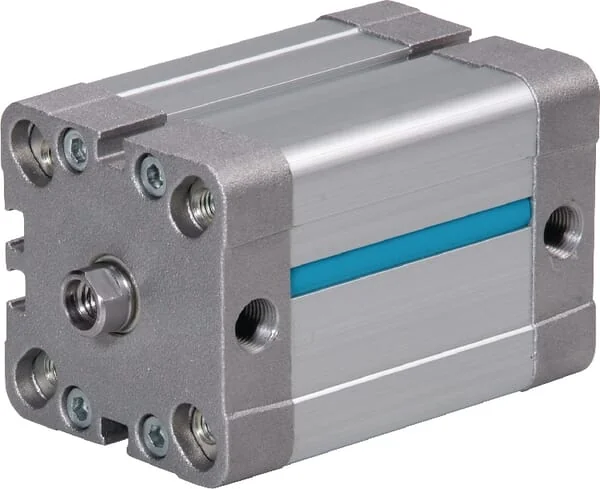

Kramp - CCND3250MI - Compact Cylinder
