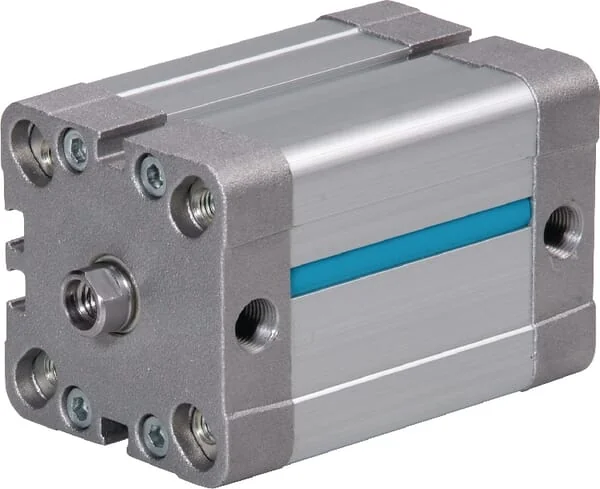

Kramp - CCND2030MI - Compact Cylinder

Kramp - CCND2030MI - Compact Cylinder

Kramp - CCND2030MI - Compact Cylinder

Kramp - CCND2030MI - Compact Cylinder

Kramp - CCND2030MI - Compact Cylinder

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping on orders over €60

Pay Securely with

Kramp - CCND2030MI - Compact Cylinder

Kramp - CCND2030MI - Compact Cylinder

€41.09

(Excl. VAT)

Price

(Excl. VAT)

€41.09

Number of products

Kramp

Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

Product Details

Brand

Type

Double acting

Unit

Each

NWidth

37 mm

Stroke

30 mm

Min. length

73 mm

Damping type

Flexible - both sides

ISO standard

21287 228/1

Rod material

Stainless steel AISI 304

BRod diameter

10 mm

Bore diameter

20 mm

Piston diameter

20 mm

Sealing material

Polyurethane

Cylinder material

Aluminium

Max. working pressure

10 BAR

Min. working pressure

1 BAR

Rod surface treatment

Anodised

Cylinder head material

Die-cast alloy

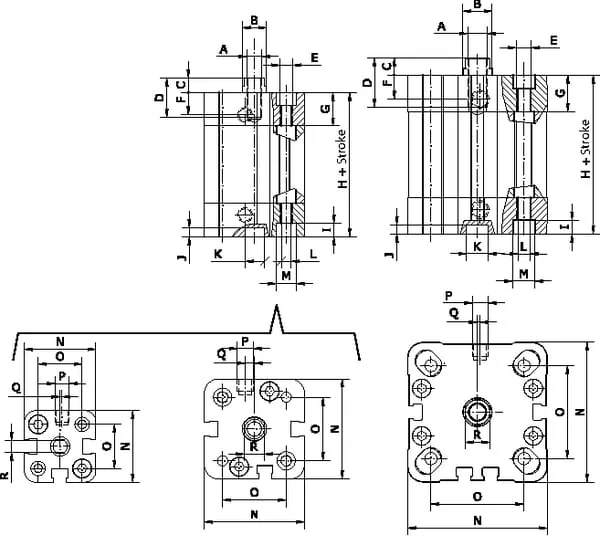

DMounting length - rod connection

10 mm

Mounting type - cylinder connection

Thread

Cylinder length without rod and head

37 mm

Mounting thread type - rod connection

Metric

G,lHousing front mounting holes length

12,3 mm4,2 mm

MHousing front mounting holes diameter

7,5 mm

OCylinder head mounting holes distance

22 mm

Housing side mounting holes thread type

Metric

AMounting thread diameter - rod connection

M6

Housing side mounting holes thread diameter

M5

EHousing front mounting holes thread diameter

M5

Mounting diameter (width) - cylinder connection

5 mm

Theoretical force at 6 bar pressure - advancing

188 N

Theoretical force at 6 bar pressure - retracting

142 N

Mounting thread type - male/female - rod connection

Female

CMounting thread to cylinder head distance - rod connection

6 mm

Manufacturer

Kramp
